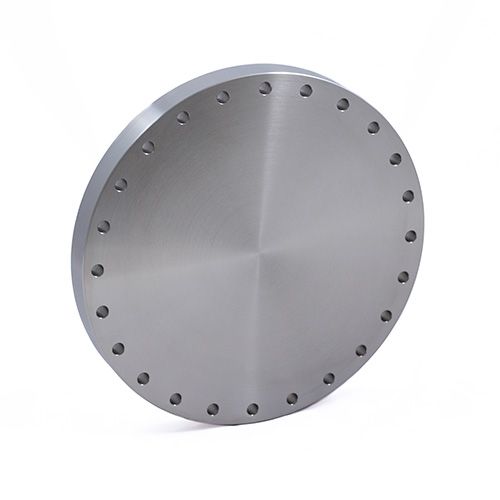

Flange, 10",DN200CF (254mm) Blank, 304ss

$298.00
SKU
110032
Availability: In Stock
Quantity:
174 Available
Lead Time:
6 weeks

Features

  • Complies with ISO 3669

  • UHV rated to 1x10-13 Torr mbar

  • High temperature rated to 450°C

  • Rotatable and non-rotatable geometries

  • OFE Copper or optional Viton® elastomer gaskets

  • Tapped or clearance bolt holes

  • Compatible with other manufacturers' Conflat® knife-edge flanges

Specifications

Material

  • Flanges               304ss (1.4301) or 316EFR (1.4429 ESU)

  • Gaskets                OFE Copper

  • Bolts                  300 stainless steel and 300ss silver Plated

Fastening

  • Bolt type              Hexagonal or 12-point head

  • Nut type              Hexagonal or two-hole plate nuts

  • Size                  .312-24 UNF or M8

  • Torque                  15 lb-ft or 20 Nm

Vacuum Range                 1x10-13 Torr or below 10-13 mbar

Temperature Range            -2000C to 4500C

Weight                      20lb or 9kg maximum

Dimensions                    9.97” OD x 7.812” ID; 253.3mm OD x 204.7mm ID maximum

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

110032.stp

110032_SC.dwg

110032_sc.dxf

110032_fr.dxf

110032_FR.dwg

More Information

More Information
Weight 20.000000
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 24
Bolt Hole Type Clearance
Flange Geometry Non-Rotatable
Flange Size DN200CF 254mm | 10.00"
Flange Type Del-Seal CF ConFlat
110032_FR_dwg (4.45 kB)
110032_sc_dxf (3.14 kB)
110032_fr_dxf (2.62 kB)
110032_SC_dwg (7.20 kB)
110032.stp (218.30 kB)
