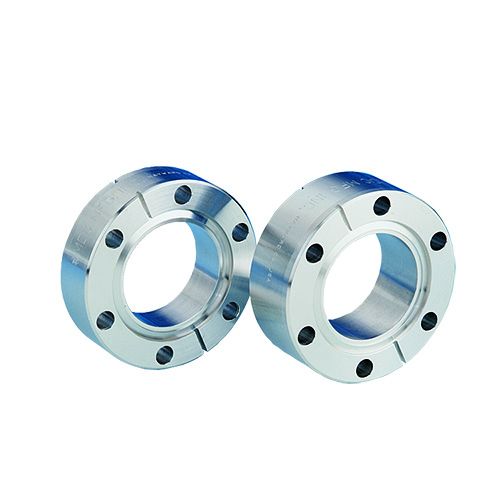

Double Sided Flange, 8"x6" ( CF-160 ID 150MM)

Part Number / SKU
140031
$211.05
Availability: In Stock
Quantity:
9 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
Double Sided Flange, 8"x6"
140031_fr_dxf (2.54 kB)
140031_SC_dwg (5.68 kB)
140031.stp (214.58 kB)
140031_FR_dwg (4.41 kB)
140031_sc_dxf (3.49 kB)

More Information

Specifications

Specifications
Weight (lb) 5.500000
Bolt Circle Diameter 7.128 inch
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 20
Bolt Hole Type Clearance
Flange Size DN160CF 203mm | 8.00" OD
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) 6 Inch Nominal (5.812)
