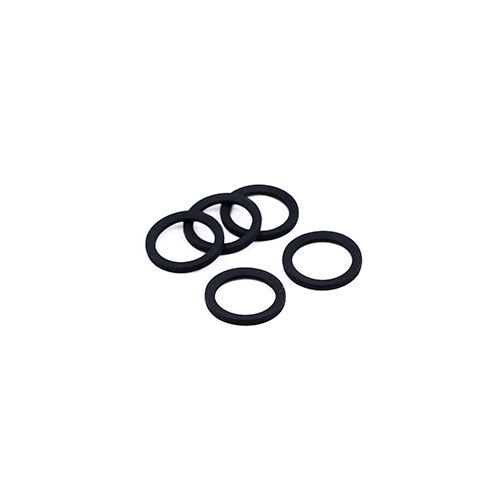

191001, FKM / FPM Elastomer Gaskets, DN16CF 34mm | 1.33" OD ConFlat Flange, 16.0mm | 0.62" ID (5 Per Pack)

Part Number / SKU
Availability: In Stock
57 Available
Standard Lead Time:
8 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

The reliable sealing performance of MDC’s Del-Seal CF flanges is a result of a unique seal design and geometry which  “captures” a metal gasket material.  When a flat OFE copper gasket is pressed between the conical sealing edges of two Del-Seal CF flanges, a lateral cold flow of the gasket material occurs. This cold flow is limited by a vertical flange wall or capture groove that is concentric to the sealing knife edge. Further material flow away from the seal area is severely limited and high interface pressures are developed. These pressures cause gasket material to fill minor surface imperfections and produce a highly reliable seal. At high temperatures, the “capturing” geometry maintains high pressures despite softening of the gaskets. Del-Seal CF flanges can be baked to 450°C and cooled to -200°C and are suitable for vacuum service levels of 1x10-13 Torr. They are ideally suited for the rigorous demands of ultra-high vacuum (UHV) environments and capable of maintaining seal integrity through high-temperature excursions. Del-Seal CF flanges are 100% compatible with the equivalent Varian Conflat® metal seal flanges.

Del-Seal CF flanges are classified as genderless flanges since the seal geometries on both mating flanges are identical. They are available in both rotatable and nonrotatable geometries with clearance or threaded bolt holes, and for standard tube sizes from .25 to 14.0 inches in diameter. MDC discourages resealing a Del-Seal CF flange with a previously used metal gasket and strongly recommends the installation of a new metal gasket every time a flange is fastened. When flange fasteners are tightened to their specified sealing torques a gap will remain between the mating flanges, which is normal and desirable. Tightening the flanges metal-to-metal is not necessary to achieve a UHV hermetic seal.

OFE copper, which stands for “Oxygen Free Electronic or Electrolytic grade Copper”, is the metal gasket material of choice for most UHV sealing applications. For special applications which preclude the use of pure copper,  various metal gasket materials including nickel, aluminum and silver plated copper are also available. MDC can also provide specialized elastomer gaskets made of DuPont Dow Elastomers Fluorocarbon-based fluoroelastomer (FKM / FPM) material. These can be used within existing UHV systems fitted with MDC DelSeal CF flanges and allow frequent and repeated assembly and disassembly. These elastomer gaskets have rectangular cross sections and fit within the standard knife edge seal geometry of a Del-Seal CF metal seal flange. Note that the use of elastomer gasket seals in metal seal flanges will reduce the system’s minimum and maximum temperatures and its vacuum ratings to -20°C,  150°C and 1x10-8 Torr, respectively. The torque required to make a leak tight seal with an elastomer gasket will be reduced to 7-10 lb-ft.

  • UHV rated to 1x10-13 Torr or 10-13 mbar
  • High temperature rated to 450°C
  • Fluorocarbon-based fluoroelastomer (FKM / FPM) elastomer gasket
  • ConFlat® compatible design

Material                            Fluorocarbon-based fluoroelastomer (FKM / FPM)

Vacuum Range               1x10-8 Torr or below 10-8 mbar

Temperature Range       -20°C to 200°C

Weight                              1/4 lb or 0.1 kg maximum

Use with Flange                                1 1/3" OD (1.33” OD x 0.625” ID maximum)  / DN16CF 34mm (33.8mm OD x 15.9mm ID maximum) mini Del-Seal CF flange

Quantity Per Pack         5

Reference                         GK-075V

More Information


Weight (lb) 0.250000
Material Fluorocarbon-based fluoroelastomer (FKM / FPM)
Reference Number GK-075V | VG16
Temperature Range -20°C to 150°C
Vacuum Range 1 x 10 -9 Torr
Flange Size DN16CF 34mm | 1.33" (1 1/3") OD Mini CF
Flange Type ConFlat CF Flange
