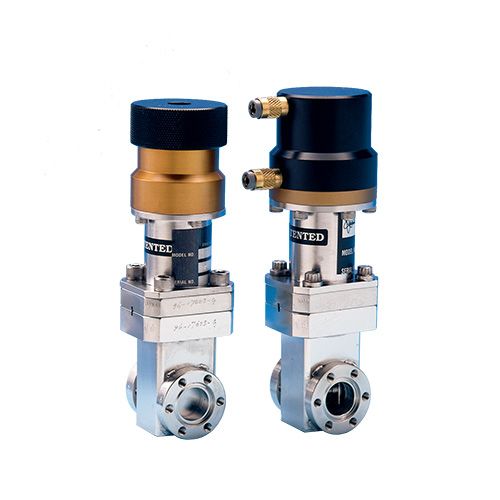

302011, Gate Valve, 0.625" (16mm) DN16, UHV, Manual, Metric

Part Number / SKU
302011
$1,500.00
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
8 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Gate Valve Standard Features

  • UHV and HV series
  • Ports with circular or rectangular apertures
  • Del-SealCF
  • Flange Thread: M4
  • Manual actuator
  • Patented C-Loc®and Uni-Loc locking  mechanism
  • 120VAC air control solenoid valve (Circular gate valves)
  • 24VDC air control solenoid valve(Rectangular gate valves)
  • OFE copper metal seal
  • Welded bellows actuator seal
  • TIG welded internal body joints
  • Electropolished interior and exterior  surfaces
  • Dry film lubricated bearings

Specifications

Material

  • Body,  Carriage & Gate  300 Series ss
  • Flange Thread:  M4
  • Bellows  AM-350 ss
  • Air Cylinder  Teflon® coated Aluminum
  • Bolts  300 Series ss,  silver plated

Gaskets

  • Bonnet UHV / HV  OFE Copper /  Fluorocarbon-based fluoroelastomer (FKM / FPM) elastomer
  • Gate  Fluorocarbon-based fluoroelastomer (FKM / FPM) or optional Kalrez® 4079 elastomer
  • Piston  Fluorocarbon-based fluoroelastomer (FKM / FPM) elastomer

Electropneumatic Actuator

  • Air Pressure  70 to 100 psig
  • Air Control  Valve  410 Series Humphrey solenoid valve
  • Solenoid Power  120VAC,  50/60Hz,  4W
  • Power Loss  Valve closes
  • Position Indicators  Mechanical,  vernier adjustable,  hinged-roller type micro switches suitable for  5A,  120/240VAC

Vacuum

  • Range  1x10-11 Torr
  • Leak Test  2x10-10 cc/sec of He

Temperature Range  Bakeability under vacuum in Open-Closed positions, with the following Bonnet-Gate seal combinations



Series

Open

Closed

Bonnet



Gate

UHV

2000C

1500C

Copper



Fluorocarbon-based fluoroelastomer (FKM / FPM)

UHV

2500C

2000C

Copper



Kalrez®

HV

1500C

1500C

Fluorocarbon-based fluoroelastomer (FKM / FPM)



Fluorocarbon-based fluoroelastomer (FKM / FPM)



Other Information

  • Sealing Valves will seal against 15 psi differential atmospheric pressure in either direction.
  • Orientation Valves can be installed in either a vertical or horizontal orientation.
  • Leak Tightness Each valve is tested using a helium mass spectrometer leak detector calibrated for a minimum sensitivity of 2x10-10 Std.  Atm. cc/sec of He
  • Maintenance Carriage and gate mechanism may be removed through the bonnet flange for seal replacement,  cleaning or retrofitting without removing the valve body from the system.
  • Manual Actuation Actuators are constructed with non-rising  Acme threads for smooth and quick operation.  Visual open position indicators are standard on all manual valves.

More Information

Specifications

Specifications
Weight (lb) 2.000000
Fastening Method Bolt
Flange Thread Type Metric
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 6
Port Size 5/8" (0.625 inches) 15.875mm
Thread Size M4
Vacuum Series Ultra High Vacuum (UHV)
