420030, Positive Pressure Burst Disc, 25 psig, DN16CF 34mm | 1.33" OD ConFlat Flange, 304ss

Name: 420030, Positive Pressure Burst Disc, 25 psig, DN16CF 34mm | 1.33" OD ConFlat Flange, 304ss
SKU: 420030
Price: 330 USD
Availability: InStock

Part Number / SKU

420030

$330.00

Availability: Backordered

This product is currently on back order (orders are still accepted).

Quantity:

0 Available

Standard Lead Time:

6 weeks

Skip to the end of the images gallery

Skip to the beginning of the images gallery

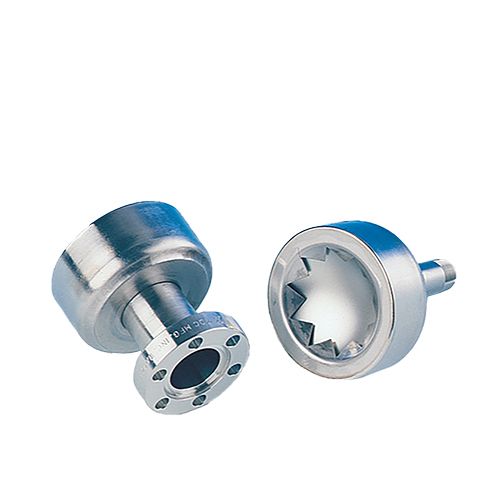

Rupture disk / safety pressure disc providing positive pressure relief
Pressure relief: 25 psig
Leak tight to 2x10-10 std. cc/sec of Helium
304 stainless steel body
Compact design with no moving parts

More Information

Specifications

Specifications
Weight (lb)	0.750000
Material	304SS (1.4301 \| UNS S30400) Stainless Steel
Reference Number	BDA-M
Vacuum Series	Ultra High Vacuum (UHV)
Flange Size	DN16CF 34mm \| 1.33" (1 1/3") OD Mini CF
Flange Type	ConFlat CF Flange
