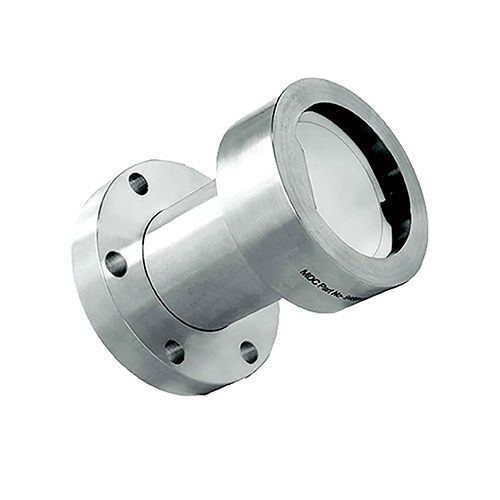

420036, Low-Pressure Burst Disc, 5-7 psig, DN40CF 70mm | 2.75" OD ConFlat Flange, 316Lss

Part Number / SKU
420036
$677.25
Availability: In Stock
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
  • Rupture disk / safety pressure disc delivers reliable, consistent overpressure rupture protection
  • Pressure relief range: 5 to 7 psig
  • Ultra high vacuum (UHV) compatible all metal construction
  • Protection of systems with hazardous gases
  • Leak tight to 2 x 10-10 std. cc/sec of Helium
  • 316L stainless steel body and disk membrane
  • Bakeable to 450¬∞C
  • Compact design with no moving parts
  • Calculated flow rates: 435 SCFM on DN40CF 70mm | 2.75" (2-3/4 inch) OD ConFlat flange assembly

More Information

Specifications

Specifications
Weight (lb) 1.00
Material 316L (1.4404 | UNS31603) Stainless Steel
Reference Number LP-BDA-275
Temperature Range Bakeable to 450°C
Vacuum Series Ultra High Vacuum (UHV)
Flange Size DN40CF 70mm | 2.75" (2 3/4") OD
Flange Type ConFlat CF Flange
