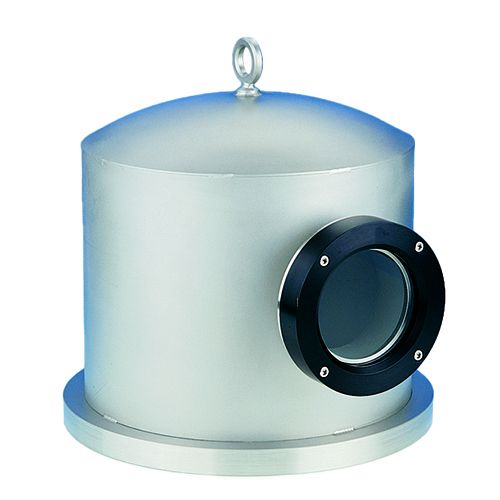

524001, Chamber, Bell Jar, 18" (457.2mm), 304ss

Part Number / SKU
524001
$4,383.75
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
12 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Lead Time:     Standard: 16 Weeks

  • Fluorocarbon-based fluoroelastomer (FKM / FPM) Elastomer Gasket Vacuum Seal
  • PVP-4D Pyrex® Viewport With 4" (101.6mm) Diameter
  • Dome-Top Welded Hoist / Lift-Ring for Added Convenience
  • UHV-Compatible Internal Vacuum Welds
  • Designed for Use with MDC Flat Baseplates, Base Wells and Feedthrough Collars
  • Optional Electropolished Finish

Material

Gasket, elastomer         Fluorocarbon-based fluoroelastomer (FKM / FPM)

Seal

Gasket, elastomer          O-Ring

Method                           Gravity

Vacuum Range              1x10-6Torr

Temperature Range       Ambient to 150°C

Nominal Size                 18" (457.2mm)

Flange O.D.                    20" (508mm)

Height W/O O-Ring        30" (762mm)

Viewport Height             12" (304.8)

Weight                            195lbs (88.45kg)

More Information

Specifications

Specifications
Weight (lb) 195.000000
Body Internal Diameter (ID) 18
Material 304SS (1.4301 | UNS S30400) Stainless Steel
