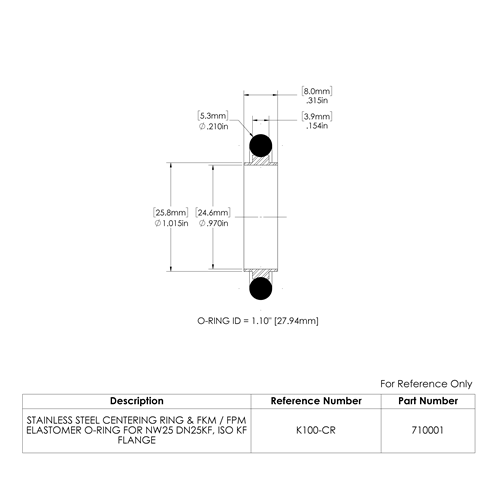

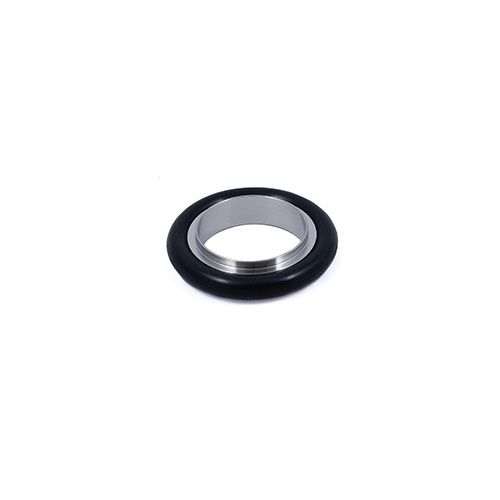

Stainless Steel Centering Ring & FKM / FPM Elastomer O-Ring for NW25 DN25KF, ISO KF Flange (EU SKU: 7710001)

Name: Stainless Steel Centering Ring & FKM / FPM Elastomer O-Ring for NW25 DN25KF, ISO KF Flange (EU SKU: 7710001)
SKU: 710001
Price: 10.5 USD
Availability: InStock

Part Number / SKU

710001

$10.50

Availability: In Stock

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

710001_A.DWG

710001.SLDDRW

710001_A.PDF

710001.SLDPRT

710001_TechnicalSpecs.rtf

Download


Download

710001_A.STEP

Download

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

Standard ring mates two ISO KF Kwik-Flanges™ of equal size
Reducer ring mates two ISO KF Kwik-Flanges™ of unequal sizes
Includes elastomer gasket
Stainless steel construction
Vacuum rated to 1x10-8 Torr
EU and Metric Catalog Part # 7710001

More Information

Specifications

Specifications
Weight (lb)	0.25
Reference Number	K100-CR \| K25-CR
Temperature Range	-20°C to 150°C
Vacuum Range	1 x 10 -8 Torr \| 1 x 10 -8 mbar
Vacuum Series	High Vacuum (HV)
Flange Type	ISO KF Kwik-Flange
