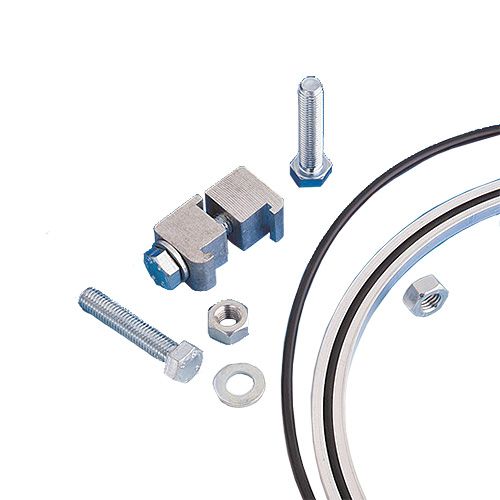

Double Claw Clamp, ISO NW320-NW500, Al

Part Number / SKU
802005
$14.70 Special Price $11.76
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Double claw-clamp Assemblies are commonly used for making Large-Flange vacuum seal connections. Assembly is simplified by the 360° rotatable flanges and the self-centering feature of the centering ring. The vacuum seal is made by compressing the o-ring between the mating flanges. This is done by alternately wrench-tightening opposing pairs of clamps until the first metal-to-metal contact is made between the inner surfaces of the flanges and the spacing lip of the centering ring.

  • Fastens ISO LF Large-Flange: NW320, NW400, NW500
  • Quick make and break
  • Zinc-plated steel bolt
  • Aluminum (Al) claw construction
  • Requires centering ring with elastomer gasket
  • M12 X 55 metric bolt

More Information

Specifications

Specifications
Weight (lb) 0.25
Material 6061-T6 Aluminum
Reference Number DC-12 | EU: DCC320/500
Vacuum Series High Vacuum (HV)
Flange Type ISO LF Large-Flange
