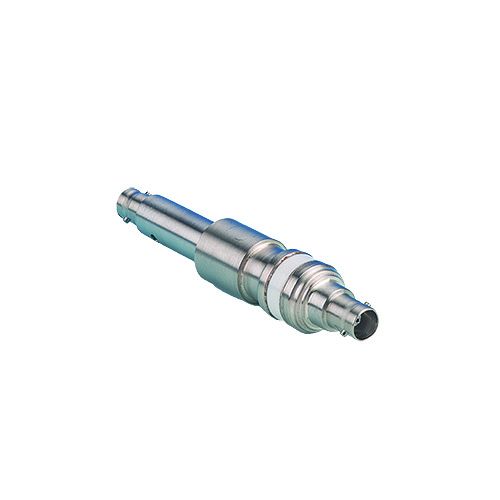

BNC Coaxial Feedthrough, 1-Pin, Floating Shield, Double Ended, Weldable

Part Number / SKU
$333.90 Special Price $267.12
Availability: In Stock
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.


Voltage                                              500V DC maximum

Current                                               3 Amps per pin

Temperature Rating

Conflat (CF)                                      -200°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 450°C

Air-side connector                             -65°C to 165°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.


BNC Coaxial Feedthrough, 1PIN, Floating Shield, Double Ended, Weldable

More Information


Weight (lb) 1.50
Feedthrough Type Coaxial
Weld Sleeve Outside Diameter 3/4 INCH
