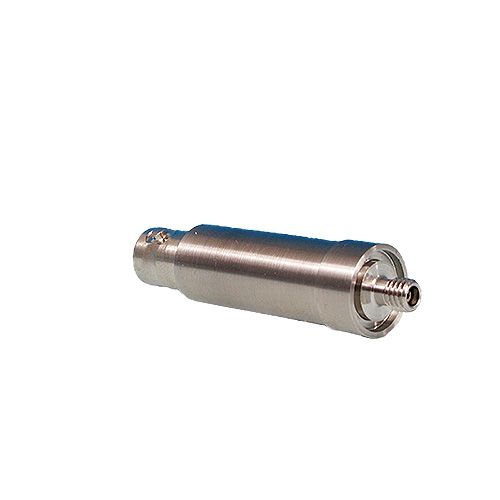

BNC-Microdot/Crystal Sensor Coaxial Feedthrough, 1-Pin, 400C Weldable

Part Number / SKU
9291190
$236.25
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Specifications

Voltage                                              500V DC maximum

Current                                               1 Amps per pin

Impedance Rating                             Non constant

Temperature Rating

Conflat (CF)                                      -100°C to 400°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 400°C

Air-side connector                             -65°C to 165°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link belowow.

9291190.STEP

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

9291190.STEP Download
BNC-Microdot/Crystal Sensor Coaxial Feedthrough, 1 Pin, 400C Weldable

More Information

Specifications

Specifications
Weight (lb) 1.00
Vacuum Series High Vacuum (HV)
Voltage 500
Conductor Material Stainless Steel
Connector Type Coaxial Microdot
Current 1
DC(kV) Air 500
DC(kV) Vacuum 500
Feedthrough Type Coaxial
Weld Sleeve Outside Diameter 1/2 INCH
Mounting Style Weldable
