Electrical Feedthroughs

Offering Feedthroughs and Breaks, as well as wires, insulators, and connectors. Refine your search with options for feedthrough and connector type and subtype, as well as setting desired voltage needed. Each part was manufactured for precision in all areas.

View as Grid List

Items 13-24 of 843

Set Descending Direction
  1. 9631003, Ceramic Vacuum Break, 8kV, 2.50" (63.5mm) ID Weldable
    9631003, Ceramic Vacuum Break, 8kV, 2.50" (63.5mm) ID Weldable
    SKU: 9631003
    $747.00

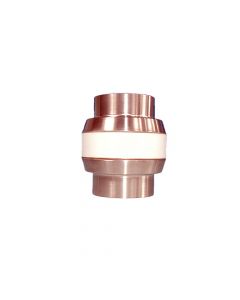

  2. 9631004, Ceramic Vacuum Break, 8kV, 3.50" (88.9mm) ID Weldable
    9631004, Ceramic Vacuum Break, 8kV, 3.50" (88.9mm) ID Weldable
    SKU: 9631004
    $845.25
  3. 9631005, Ceramic Vacuum Break, 15kV, 6.00" (152.4mm) ID Weldable
    9631005, Ceramic Vacuum Break, 15kV, 6.00" (152.4mm) ID Weldable
    SKU: 9631005
    $1,632.75
  4. 9631006, Ceramic Vacuum Break, 15kV, 7.75" (196.9mm) ID Weldable
    9631006, Ceramic Vacuum Break, 15kV, 7.75" (196.9mm) ID Weldable
    SKU: 9631006
    $2,195.55

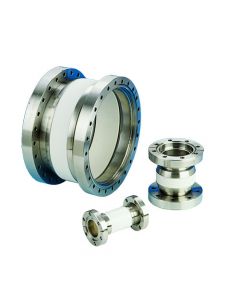

  5. 9632000, Ceramic Vacuum Break, 10kV, 0.75" (19.1mm) ID, 1.33" (DN16CF 34mm) Del-Seal CF ConFlat Flange
    9632000, Ceramic Vacuum Break, 10kV, 0.75" (19.1mm) ID, 1.33" (DN16CF 34mm) Del-Seal CF ConFlat Flange
    SKU: 9632000
    $283.50
  6. 9632001, Ceramic Vacuum Break, 3kV, 1.50" (38.1mm) ID, 2.75" (DN40CF 70mm) Del-Seal CF ConFlat Flange
    9632001, Ceramic Vacuum Break, 3kV, 1.50" (38.1mm) ID, 2.75" (DN40CF 70mm) Del-Seal CF ConFlat Flange
    SKU: 9632001
    $277.20

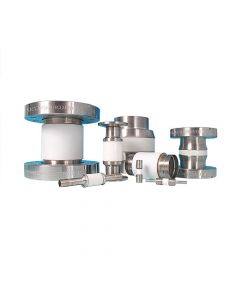

  7. 9632002, Ceramic Break, 15kV, 2.75" (DN40CF 70mm) Del-Seal CF ConFlat Flange
    9632002, Ceramic Break, 15kV, 2.75" (DN40CF 70mm) Del-Seal CF ConFlat Flange
    SKU: 9632002
    $282.45

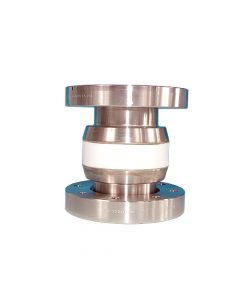

  8. 9632003, Ceramic Vacuum Break, 8kV, 2.50" (63.5mm) ID, 4.50" (DN63CF 114.3mm) Del-Seal CF ConFlat Flange
    9632003, Ceramic Vacuum Break, 8kV, 2.50" (63.5mm) ID, 4.50" (DN63CF 114.3mm) Del-Seal CF ConFlat Flange
    SKU: 9632003
    $1,047.90
  9. 9632004, Ceramic Break, 8kV, 6.00" (DN100CF 152.4mm) Del-Seal CF ConFlat Flange
    9632004, Ceramic Break, 8kV, 6.00" (DN100CF 152.4mm) Del-Seal CF ConFlat Flange
    SKU: 9632004
    $1,295.70
  10. 9632005, Ceramic Vacuum Break, 15kV, 8.00" (DN160CF 203.2mm) Del-Seal CF ConFlat Flange
    9632005, Ceramic Vacuum Break, 15kV, 8.00" (DN160CF 203.2mm) Del-Seal CF ConFlat Flange
    SKU: 9632005
    $2,223.90
  11. 9632006, Ceramic Vacuum Break, 15kV, 8.00" (203.2mm) ID, 10.00" (DN200CF 254mm) Del-Seal CF ConFlat Flange
    9632006, Ceramic Vacuum Break, 15kV, 8.00" (203.2mm) ID, 10.00" (DN200CF 254mm) Del-Seal CF ConFlat Flange
    SKU: 9632006
    $3,276.00
  12. 9632011, NEW Large Ceramic Vacuum Break, 15kV, 11.75" (298.5mm) ID, 2 Non-Rotatable 14.00" (DN295CF 355.6mm) Del-Seal CF ConFlat Flanges
    9632011, NEW Large Ceramic Vacuum Break, 15kV, 11.75" (298.5mm) ID, 2 Non-Rotatable 14.00" (DN295CF 355.6mm) Del-Seal CF ConFlat Flanges
    SKU: 9632011
    $10,135.00
