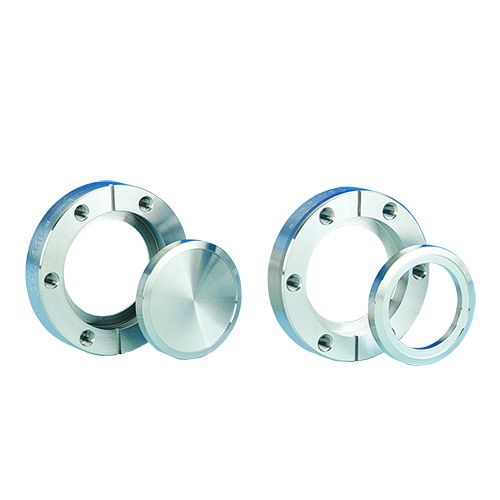

Flange, 2.75" x 1.25", Rotatable, 304ss

Part Number / SKU
100013
$24.15
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

100013_sc.dxf

100013_sc.dwg

100013_fr.dxf

100013_fr.dwg

100013.stp

Flange, 2.75" x 1.25", Rotatable, 304ss
100013_fr_dwg (5.43 kB)
100013.stp (101.09 kB)
100013_sc_dxf (2.89 kB)
100013_fr_dxf (2.04 kB)
100013_sc_dwg (6.70 kB)

More Information

Specifications

Specifications
Weight (lb) 0.500000
Bolt Hole Diameter 0.265 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 6
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN40CF 70mm | 2.75" (2 3/4")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) 1-1/4 Inch Nominal (1.255)
