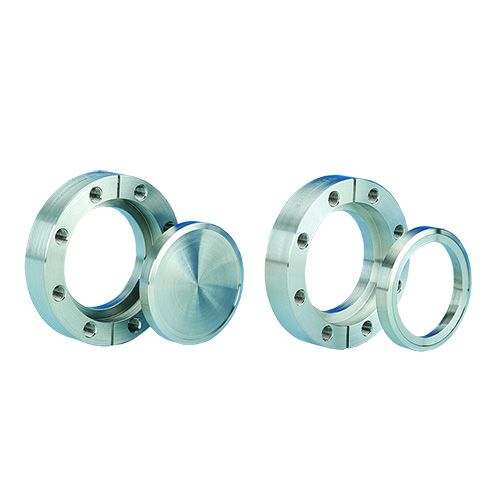

Flange, 3.38", Blank, Rotatable, 304ss

Part Number / SKU
100015
$47.25
Availability: In Stock
Quantity:
3 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

100015_sc.dwg

100015_fr.dxf

100015_sc.dxf

100015_fr.dwg

100015.stp

100015.STEP

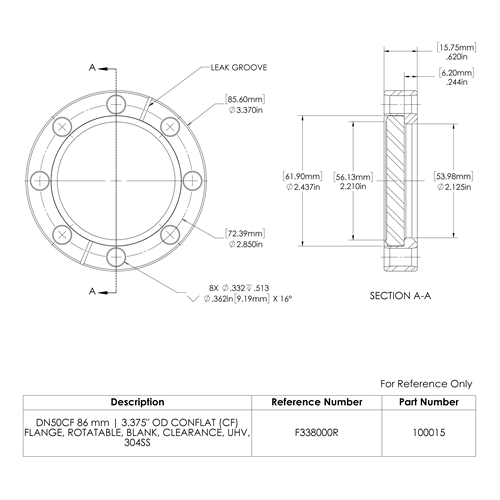

Flange, 3.38", Blank, Rotatable, 304ss
100015.stp (108.77 kB)
100015_fr_dxf (2.26 kB)
100015_sc_dwg (6.67 kB)
100015_fr_dwg (5.80 kB)
100015_sc_dxf (2.88 kB)

More Information

Specifications

Specifications
Weight (lb) 0.500000
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 8
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN50CF 86mm | 3.375" (3 3/8")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) Blank
