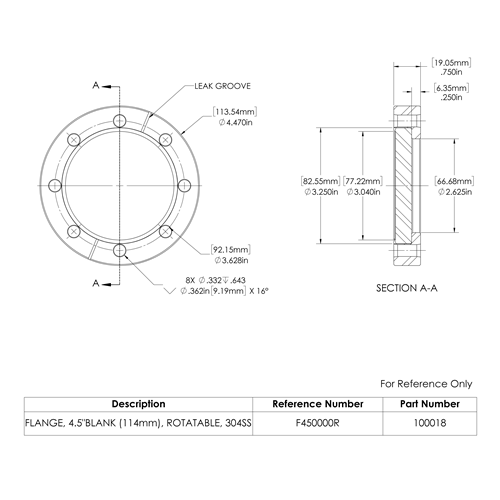

Flange, 4.5"Blank (114mm), Rotatable, 304ss

$95.19
SKU
100018
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
4 weeks

Features

  • Complies with ISO 3669

  • UHV rated to 1x10-13 Torr mbar

  • High temperature rated to 450°C

  • Rotatable and non-rotatable geometries

  • OFE Copper or optional Viton® elastomer gaskets

  • Tapped or clearance bolt holes

  • Compatible with other manufacturers' Conflat® knife-edge flanges

Specifications

Material

  • Flanges               304ss (1.4301) or 316EFR (1.4429 ESU)

  • Gaskets                OFE Copper

  • Bolts                  300 stainless steel and 300ss silver Plated

Fastening

  • Bolt type              Hexagonal or 12-point head

  • Nut type              Hexagonal or two-hole plate nuts

  • Size                  .312-24 UNF or M8

  • Torque                  15 lb-ft or 20 Nm

Vacuum Range                 1x10-13 Torr or below 10-13 mbar

Temperature Range            -2000C to 4500C

Weight                      3lb or 1.4kg maximum

Dimensions                    4.47” OD x 2.51” ID; 113.5mm OD x 66mm ID maximum

More Information

More Information
Weight 3.000000
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 8
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN63CF 114mm | 4.5" (4 1/2")
Flange Type Del-Seal CF ConFlat
100018_fr_dxf (2.26 kB)
100018.stp (108.77 kB)
100018_fr_dwg (5.92 kB)
100018_sc_dxf (2.98 kB)
Flange, 4.5"Blank, Rotatable, 304ss
