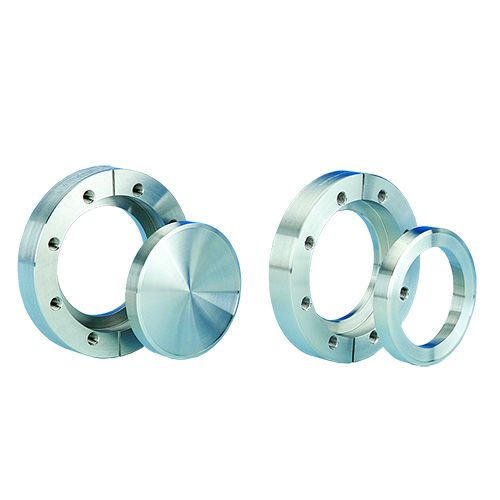

Flange, 4.5" x 1.5, Rotatable, 304ss

Part Number / SKU
100019
$99.75
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

100019_sc.dxf

100019_sc.dwg

100019_fr.dxf

100019_fr.dwg

100019.stp

Flange, 4.5" x 1.5, Rotatable, 304ss
100019_fr_dwg (5.97 kB)
100019_sc_dxf (3.05 kB)
100019_fr_dxf (2.28 kB)
100019_sc_dwg (6.88 kB)
100019.stp (117.18 kB)

More Information

Specifications

Specifications
Weight (lb) 0.500000
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 8
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN63CF 114mm | 4.5" (4 1/2")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) 1-1/2 Inch Nominal (1.375)
