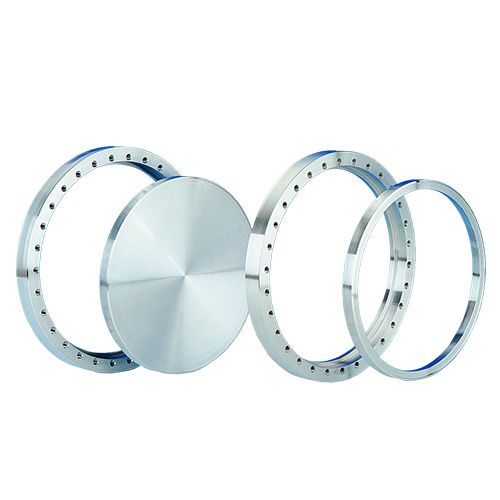

Flange, 13.25 x 10", Rotatable, 304ss

$1,367.32
SKU
100035
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

100035.stp

100035_sc.dwg

100035_fr.dwg

100035_sc.dxf

100035_fr.dxf

More Information

More Information
Weight 0.500000
Bolt Hole Diameter 0.390 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 30
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN275CF 337mm | 13.25" (13 1/4")
Flange Type Del-Seal CF ConFlat
100035_fr_dwg (6.82 kB)
100035_sc_dxf (3.00 kB)
100035.stp (291.48 kB)
100035_fr_dxf (2.78 kB)
100035_sc_dwg (6.74 kB)
Flange, 13.25 x 10", Rotatable, 304ss
