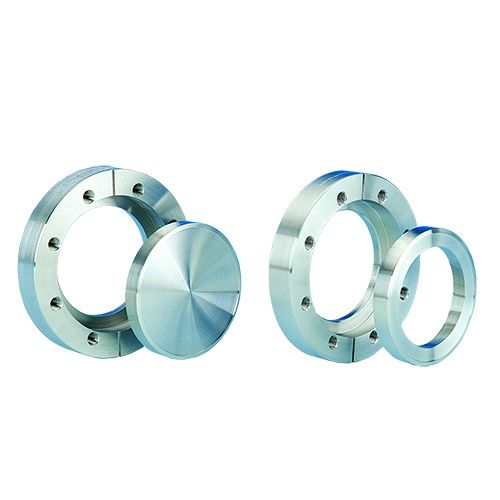

100052, Flange, Del-Seal, Conflat Flange, DN63CF, 114mm x 70mm (4.5" x 2.8"), Rotatable, Clearance, 304ss

• Complies with ISO 3669

• UHV rated to 1x10^-13 Torr mbar

• High temperature rated to 450°C

• Rotatable and non-rotatable geometries

• OFE Copper or optional Fluorocarbon-based fluoroelastomer (FKM / FPM) elastomer gaskets

• Tapped or clearance bolt holes

• Compatible with other manufacturers' Conflat® knife-edge flanges

Material

• Flanges                304ss (1.4301)

• Gaskets                OFE Copper

• Bolts                    300 stainless steel and 300ss silver Plated

Fastening

• Bolt type               Hexagonal or 12-point head

• Nut type                Hexagonal or two-hole plate nuts

• Size                         M8

• Torque                    20 Nm

Vacuum Range                Below 10^-13 mbar

Temperature Range       -200⁰C to 450⁰C

Weight                              1 kg | 2.2 lb

Dimensions             I 13.5 OD x 66.0 ID | 4.5" OD x  2.6" ID
