Flange, 2.75" x 0.75" (69.85mm x 19.05mm), 304ss

Flange, 2.75" x 0.75" (69.85mm x 19.05mm), 304ss

Part Number / SKU

110011

$17.85

Availability: 6 Weeks

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

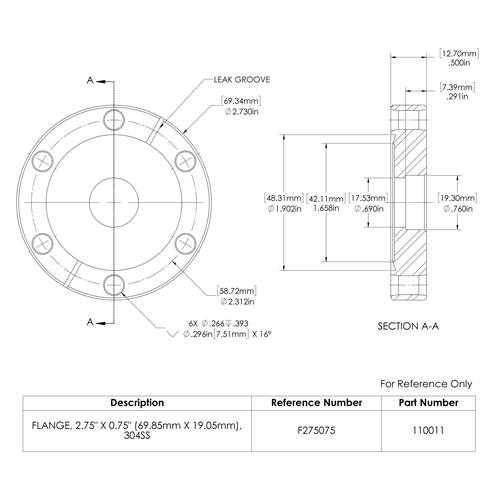

110011_A.PDF

110011.SLDPRT

110011_TechnicalSpecs.rtf


110011_A.STEP

110011.SLDDRW

110011_A.DWG

Skip to the end of the images gallery

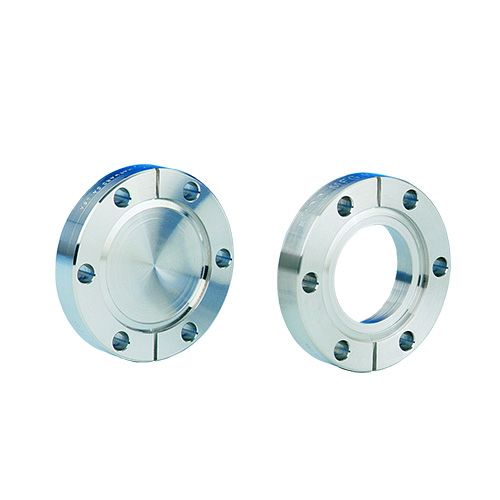

main product photo

Skip to the beginning of the images gallery

Flange, 2.75" x 0.75" , 304ss

More Information

Specifications

Specifications
Weight (lb)	0.75
Bolt Hole Diameter	0.265 inch
Material	304SS (1.4301 \| UNS S30400) Stainless Steel
Number of Bolt Holes	6
Bolt Hole Type	Clearance
Flange Geometry	Non-Rotatable
Flange Size	DN40CF 70mm \| 2.75" (2 3/4") OD
Flange Type	ConFlat CF Flange
