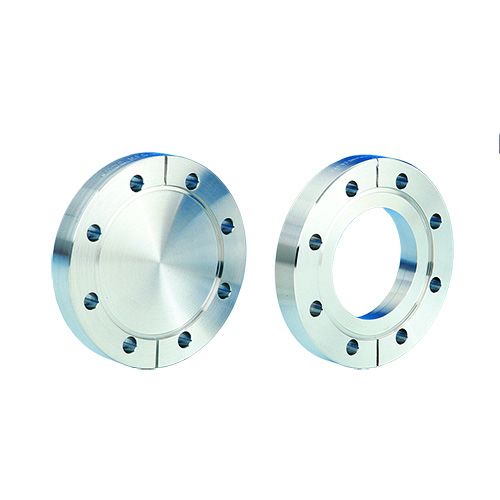

Flange, 4.5" x 1.5" (114.3mm x 38.1mm), 304ss

SKU
110019
$59.85
Availability: In Stock
Quantity:
36 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
Flange, 4.5" x 1.5", 304ss
110019_FR_dwg (4.06 kB)
110019_sc_dxf (3.08 kB)
110019_SC_dwg (4.91 kB)
110019.stp (102.42 kB)
110019_fr_dxf (2.24 kB)

More Information

Specifications

Specifications
Weight 0.500000
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 8
Bolt Hole Type Clearance
Flange Geometry Non-Rotatable
Flange Size DN63CF 114mm | 4.5" (4 1/2")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) 1-1/2 Inch Nominal (1.375)
