110025, DN100CF 152mm, 6.00" ConFlat Flange, Nonrotatable, Blank, Del-Seal CF, 304ss

SKU
110025
$87.15
Availability: In Stock
Quantity:
27 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Features

  • Complies with ISO 3669

  • UHV rated to 1x10-13 Torr mbar

  • High temperature rated to 450°C

  • Rotatable and non-rotatable geometries

  • OFE Copper or optional Viton® elastomer gaskets

  • Tapped or clearance bolt holes

  • Compatible with other manufacturers' Conflat® knife-edge flanges

Specifications

Material

  • Flanges               304ss (1.4301) or 316EFR (1.4429 ESU)

  • Gaskets                OFE Copper

  • Bolts                  300 stainless steel and 300ss silver Plated

Fastening

  • Bolt type              Hexagonal or 12-point head

  • Nut type              Hexagonal or two-hole plate nuts

  • Size                  .312-24 UNF or M8

  • Torque                15 lb-ft or 20 Nm

Vacuum Range             1x10-13 Torr or below 10-13 mbar

Temperature Range       -2000C to 4500C

Weight                           5.5lb or 2.5kg maximum

Dimensions                   5.97”OD x 3.81”ID; 152mm OD x 104mm ID maximum

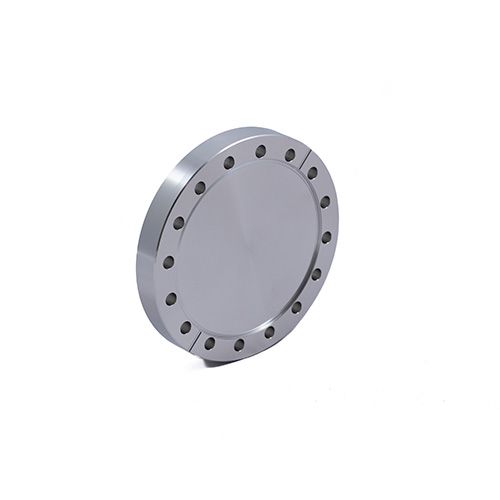

Flange, 6.0", Blank, 304ss
110025_fr_dxf (2.40 kB)
110025_SC_dwg (4.84 kB)
110025.stp (156.89 kB)
110025_FR_dwg (4.26 kB)
110025_sc_dxf (2.83 kB)
110025.STEP (285.87 kB)

More Information

Specifications

Specifications
Weight 5.500000
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 16
Bolt Hole Type Clearance
Flange Geometry Non-Rotatable
Flange Size DN100CF 152mm | 6.00"
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) Blank
