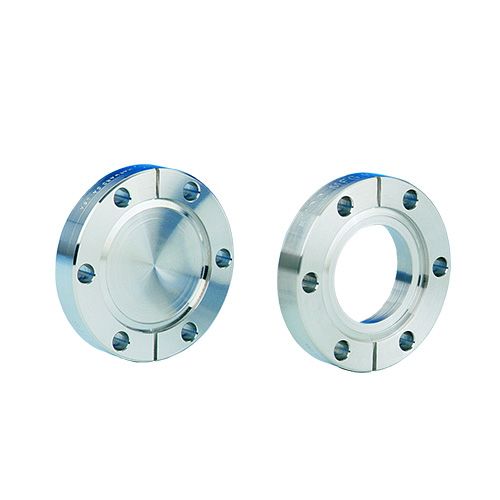

110053, Flange, Del-Seal, Conflat Flange, DN63CF, 114mm x 70mm (4.5" x 2.8"), Clearance, Non-rotatable, 304ss

Part Number / SKU
110053
$0.00
Availability: In Stock
Quantity:
1 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
  • Complies with ISO 3669
  • UHV rated to 1x10-13 Torr or 1x10-13 mbar
  • High temperature rated to 450°C
  • Rotatable and non-rotatable geometries
  • OFE copper or optional Viton® elastomer gaskets
  • Tapped or clearance bolt holes
  • Compatible with other manufacturers' Conflat® knife-edge flanges

Material

  • Flanges                304ss (1.430I)
  • Gaskets               OFE copper
  • Bolts                    300 stainless steel

Fastening

  • Bolt Type              Hexagonal
  • Nut Type               Hexagonal or two-hole plate nuts
  • Size                       M8
  • Torque                  20 Nm



Vacuum range                to below 10-13 mbar



Temperature range        -200°C to 450°C



Weight                               1 kg | 2.2 lb



Dimensions                      113.5 mm OD x 66.7 mm ID | 4.5" OD x 2.7" ID

More Information

Specifications

Specifications
Weight (lb) 2.200000
Material 300SS Stainless Steel
