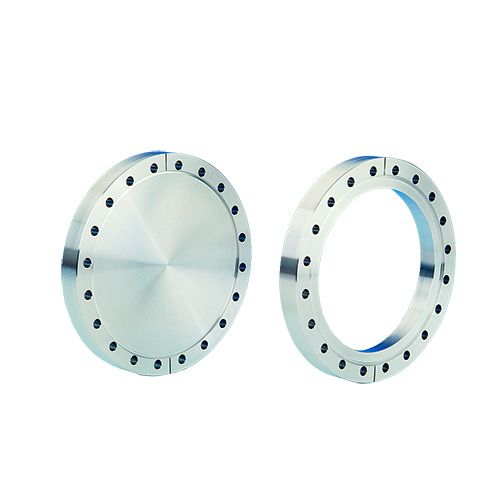

Flange, 8" x 6.125" (203mm x 156mm) 304ss
Features
-
Complies with ISO 3669
-
UHV rated to 1x10-13 Torr mbar
-
High temperature rated to 450°C
-
Rotatable and non-rotatable geometries
-
OFE Copper or optional Fluorocarbon-based fluoroelastomer (FKM / FPM) elastomer gaskets
-
Tapped or clearance bolt holes
-
Compatible with other manufacturers' Conflat® knife-edge flanges
Specifications
Material
-
Flanges               304ss (1.4301) or 316EFR (1.4429 ESU)
-
Gaskets                OFE Copper
-
Bolts                  300 stainless steel and 300ss silver Plated
Fastening
-
Bolt type              Hexagonal or 12-point head
-
Nut type              Hexagonal or two-hole plate nuts
-
Size                  .312-24 UNF or M8
-
Torque                  15 lb-ft or 20 Nm
Vacuum Range                 1x10-13 Torr or below 10-13 mbar
Temperature Range            -2000C to 4500C
Weight                     12lb or 5.5kg maximum
Dimensions                   6.75" OD x 4.87" ID; 203mm OD x I04mm ID maximum
More Information
Specifications
Weight (lb) | 12.00 |
Vacuum Series | Ultra High Vacuum (UHV) |
Bolt Hole Type | Clearance |
Flange Geometry | Non-Rotatable |
Flange Size | DN160CF 203mm | 8.00" OD |
Flange Type | ConFlat CF Flange |
