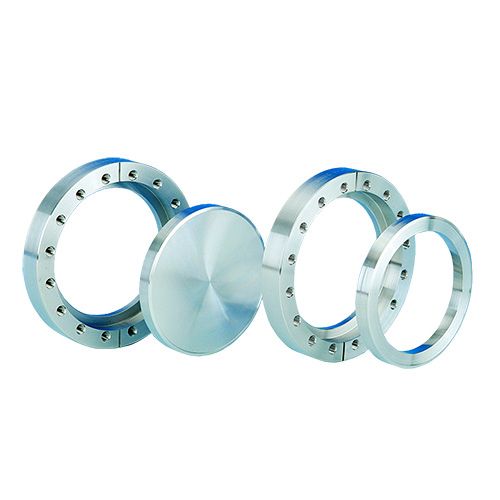

Flange, 6" x 4" (152mm x 101.6mm), Rotatable, 316LN

Features

• Complies with ISO 3669

• UHV rated to 1x10^-13 Torr mbar

• High temperature rated to 450¬∞C

• Rotatable and non-rotatable geometries

• OFE Copper or optional Fluorocarbon-based fluoroelastomer (FKM / FPM) elastomer gaskets

• Tapped or clearance bolt holes

• Compatible with other manufacturers' Conflat® knife-edge flanges

Specifications

Material

• Flanges ¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬† 304ss (1.4301) or 316EFR (1.4429 ESU)

• Gaskets¬† ¬† ¬† ¬† ¬† ¬† ¬† ¬† OFE Copper

• Bolts¬† ¬† ¬† ¬† ¬† ¬† ¬† ¬† ¬† 300 stainless steel and 300ss silver Plated

Fastening

• Bolt type¬† ¬† ¬† ¬† ¬† ¬† ¬† Hexagonal or 12-point head

• Nut type¬† ¬† ¬† ¬† ¬† ¬† ¬† Hexagonal or two-hole plate nuts

• Size¬† ¬† ¬† ¬† ¬† ¬† ¬† ¬† ¬† .312-24 UNF or M8

• Torque¬† ¬† ¬† ¬† ¬† ¬† ¬† ¬† 15 lb-ft or 20 Nm

Vacuum Range             1x10^-13 Torr or below 10^-13 mbar

Temperature Range ¬† ¬†¬† ¬†-200⁰C to 450⁰C

Weight                           5.5lb or 2.5kg maximum

Dimensions                   5.97"OD x 3.81"ID; 152mm OD x 104mm ID maximum

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

1112341 REV 1.STEP
