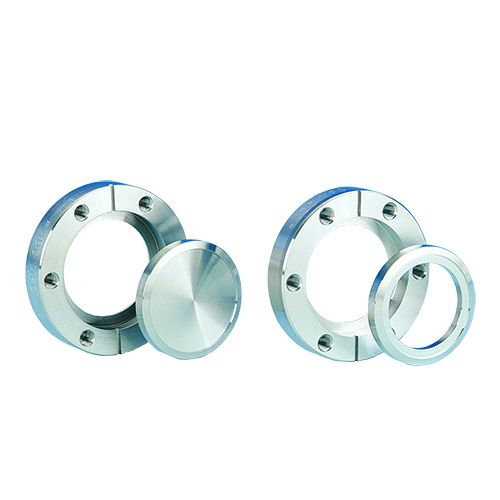

120010, Flange, Del-Seal, Conflat Flange, 2.75" x 0.5" (69.85mm x 12.7mm), Rotatable, Tapped, 304ss

SKU
120010
$31.50
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
  • Complies with ISO 3669
  • UHV rated to 1x10-13 Torr or 1x10-13 mbar
  • High temperature rated to 450°C
  • Rotatable and non-rotatable geometries
  • OFE copper or optional Viton® elastomer gaskets
  • Tapped or clearance bolt holes
  • Compatible with other manufacturers' Conflat® knife-edge flanges

Material

  • Flanges                304ss (1.430I)
  • Gaskets               OFE copper
  • Bolts                    300 stainless steel (ss) and 300ss silver-plated



Fastening

  • Bolt Type              Hexagonal or 12-point head
  • Nut Type               Hexagonal or two-hole plate nuts
  • Size                       .250-28 UNF or M6
  • Torque                  12 lb-ft or 16 Nm



Vacuum range                1x10-13 Torr or below 10-13 mbar



Temperature range        -200°C to 450°C



Weight                               .75 lb | 0.34 kg



Dimensions                      2.75 OD x 0.5 ID | 69.85 mm OD x12.7 mm ID

120010.stp (124.35 kB)
120010_fr_dwg (5.56 kB)
120010_sc_dxf (2.78 kB)

More Information

Specifications

Specifications
Weight 0.500000
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 6
Thread Size 0.250-28 UNF
Bolt Hole Type Tapped
Flange Geometry Rotatable
Flange Size DN40CF 70mm | 2.75" (2 3/4")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) Blank
