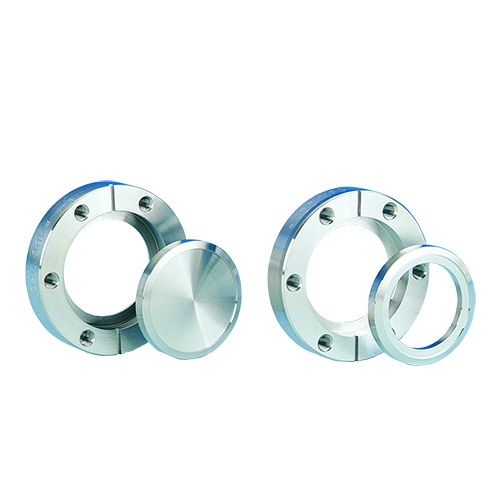

Flange, 2.75" x 1.25", Rotatable, Tapped, 304ss

Part Number / SKU
120013
$31.50
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
Flange, 2.75" x 1.25", Rotatable, Tapped, 304ss
120013.stp (126.36 kB)
120013_fr_dxf (2.12 kB)
120013_sc_dwg (6.44 kB)

More Information

Specifications

Specifications
Weight (lb) 0.500000
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 6
Thread Size 0.250-28 UNF
Bolt Hole Type Tapped
Flange Geometry Rotatable
Flange Size DN40CF 70mm | 2.75" (2 3/4") OD
Flange Type ConFlat CF Flange
Internal Diameter (ID) 31.8mm | 1 1/4 Inch ID Nominal (1.255")
