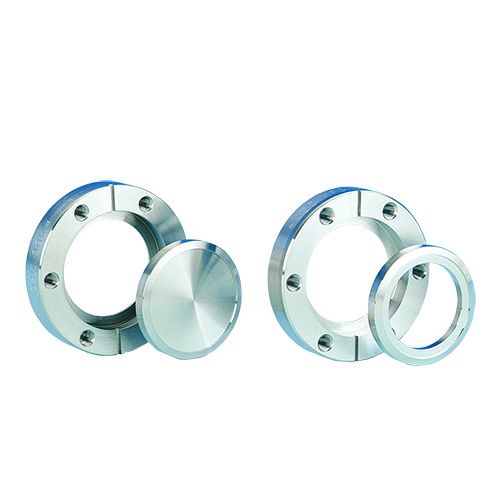

DN40CF 2.75" (70mm) OD, Rotatable, Tapped, 1.5" (38mm) ID, 304ss
Part Number / SKU
120014
$26.78
Availability:
In Stock
Flange, 2.75" x 1.5", Rotatable, Tapped, 304ss
More Information
Specifications
| Weight (lb) | 0.50 |
| Material | 304SS (1.4301 | UNS S30400) Stainless Steel |
| Number of Bolt Holes | 6 |
| Thread Size | 0.250-28 UNF |
| Bolt Hole Type | Tapped |
| Flange Geometry | Rotatable |
| Flange Size | DN40CF 70mm | 2.75" (2 3/4") OD |
| Flange Type | ConFlat CF Flange |
| Internal Diameter (ID) | 38.1mm | 1 1/2 Inch ID Nominal (1.510") |
