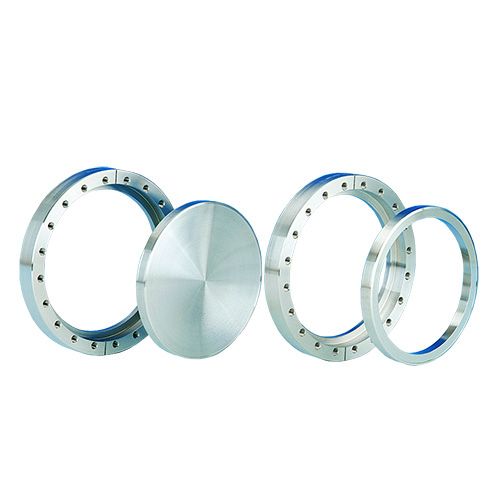

120030, Flange, 8" (203mm) DN160CF, Blank, Rotatable, Tapped, 304ss

$309.46
SKU
120030
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks

More Information

More Information
Weight 12.000000
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 20
Bolt Hole Type Tapped
Flange Geometry Rotatable
Flange Size DN160CF 203mm | 8.00"
Flange Type Del-Seal CF ConFlat

Features

  • Complies with ISO 3669
  • UHV rated to 1x10-13 Torr mbar
  • High temperature rated to 450°C
  • Rotatable and non-rotatable geometries
  • OFE Copper or optional Viton® elastomer gaskets
  • Tapped or clearance bolt holes
  • Compatible with other manufacturers' Conflat® knife-edge flanges
  • MDC EU Catalog part # 120073 - converted to 120030 in the website
  •

Specifications

Material

  • Flanges 304ss ( 1.430 I) or 316EFR ( 1.4429 ESU)
  • Gaskets OFE Copper
  • Bolts 300 Stainless steel and 300ss silver Plated

Fastening

  • Bolt type Hexagonal or 12-point head
  • Nut type Hexagonal or two-hole plate nuts
  • Size .312-24 UNF or M8
  • Torque 15 lb-ft or 20 Nm

Vacuum range                                   1x10-13 Torr or below 10-13 mbar

Temperature range                         -2000C to 4500C

Weight                                                 12lb or 5.5kg maximum

Dimensions                                        7.97”OD x 5.81” ID; 202.4mm OD x 156mm ID maximum
