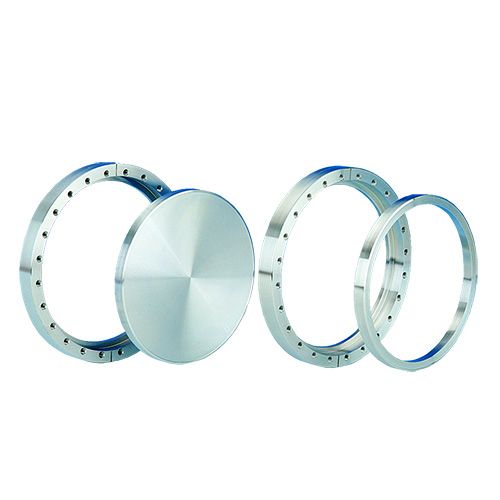

120033, Flange, 10" x 8" (254mmx203.2mm) DN200CF, Rotatable, Tapped, 304ss

SKU
120033
$547.05
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Features

  • Complies with ISO 3669
  • UHV rated to 1x10-13 Torr mbar
  • High temperature rated to 450°C
  • Rotatable and non-rotatable geometries
  • OFE Copper or optional Viton® elastomer gaskets
  • Tapped or clearance bolt holes
  • Compatible with other manufacturers' Conflat® knife-edge flange

Specifications

Material

  • Flanges               304ss (1.4301) or 316EFR (1.4429 ESU)
  • Gaskets                OFE Copper
  • Bolts                  300 stainless steel and 300ss silver Plated

Fastening

  • Bolt type              Hexagonal or 12-point head
  • Nut type              Hexagonal or two-hole plate nuts
  • Size                  .312-24 UNF or M8
  • Torque                  15 lb-ft or 20 Nm

Vacuum Range                 1x10-13 Torr or below 10-13 mbar

Temperature Range            -2000C to 4500C

Weight                      20lb or 9kg maximum

Dimensions                    9.97” OD x 7.812” ID; 253.3mm OD x 204.7mm ID maximum

120033_fr_dxf (2.88 kB)
120033_sc_dwg (6.92 kB)
120033.stp (343.43 kB)

More Information

Specifications

Specifications
Weight 0.500000
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 24
Thread Size 0.312-24 UNF
Bolt Hole Type Tapped
Flange Geometry Rotatable
Flange Size DN200CF 254mm | 10.00"
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) 8 Inch Nominal (7.812)
