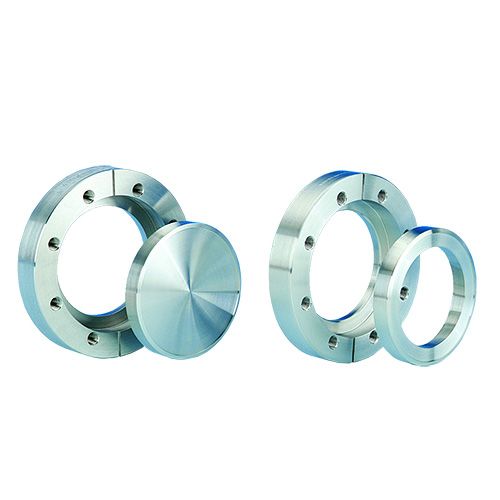

120064, Flange, Del-Seal, Conflat Flange, DN63CF, 114mm x 63.5mm (4.5" x 2.5"), Tapped, Rotatable, 304ss

Part Number / SKU
120064
$66.00
Availability: 3 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
  • Complies with ISO 3669
  • UHV rated to 1x 10-13 mbar
  • High temperature rated to 450°C
  • Rotatable and non-rotatable geometries
  • OFE copper or optional Fluorocarbon-based fluoroelastomer (FKM / FPM) elastomer gaskets
  • Tapped or clearance bolt holes
  • Compatible with other manufacturers' Conflat® knife-edge flanges

Material

  • Flanges                304ss (1.430I)
  • Gaskets               OFE copper
  • Bolts                    300 stainless steel (ss)



Fastening

  • Bolt Type              Hexagonal
  • Nut Type               Hexagonal or two-hole plate nuts
  • Size                       M8
  • Torque                  20 Nm



Vacuum range                Below 10-13 mbar



Temperature range        -200°C to 450°C



Weight                               1 kg | 2.2 lb



Dimensions                     114mm x 63.5mm |4.5" x 2.5"

More Information

Specifications

Specifications
Weight (lb) 2.20
