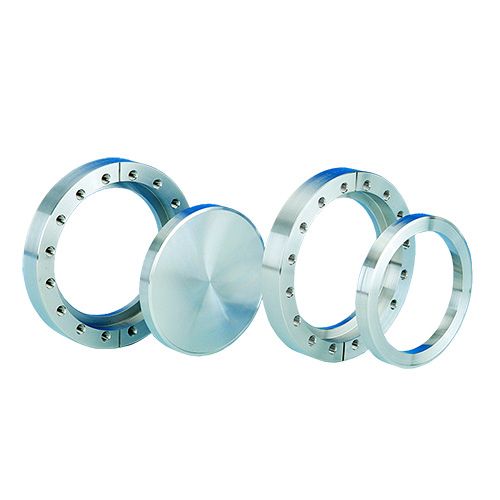

120068, Flange, Del-Seal, Conflat Flange, DN100CF, 152mm (6"), Blank, Tapped, Rotatable, 304ss

$96.00
SKU
120068
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
5 weeks

More Information

More Information
Weight 3.500000
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN100CF 152mm | 6.00"
Flange Type Del-Seal CF ConFlat
  • Complies with ISO 3669
  • UHV rated to 1x10-13 Torr mbar

  • High temperature rated to 450°C

  • Rotatable and non-rotatable geometries

  • OFE Copper or optional Viton® elastomer gaskets

  • Tapped or clearance bolt holes

  • Compatible with other manufacturers' Conflat® knife-edge flanges

Material

  • Flanges               304ss (1.4301)

  • Gaskets                OFE Copper

  • Bolts                  300 stainless steel

Fastening

  • Bolt type              Hexagonal

  • Nut type              Hexagonal or two-hole plate nuts

  • Size                      M8

  • Torque                20 Nm

Vacuum Range             to below 10-13 mbar

Temperature Range       -2000C to 4500C

Weight                           2.5 kg | 5.5 lb

Dimensions                  152mm | 6"
