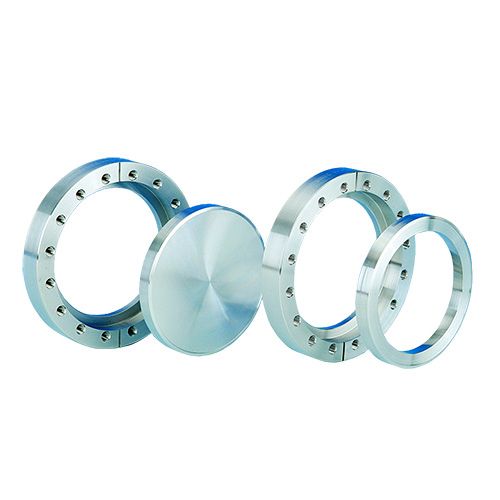

120069, Flange, Del-Seal, Conflat Flange, DN100CF, 152mm x 101.6mm (6" x 4"), Tapped, Rotatable, 304ss

Part Number / SKU
120069
$96.00
Availability: 3 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
  • Complies with ISO 3669
  • UHV rated to 1x10-13 Torr mbar

  • High temperature rated to 450°C

  • Rotatable and non-rotatable geometries

  • OFE Copper or optional Fluorocarbon-based fluoroelastomer (FKM / FPM) elastomer gaskets

  • Tapped or clearance bolt holes

  • Compatible with other manufacturers' Conflat® knife-edge flanges

Material

  • Flanges               304ss (1.4301)

  • Gaskets                OFE Copper

  • Bolts                  300 stainless steel

Fastening

  • Bolt type              Hexagonal

  • Nut type              Hexagonal or two-hole plate nuts

  • Size                      M8

  • Torque                20 Nm

Vacuum Range             to below 10-13 mbar

Temperature Range       -2000C to 4500C

Weight                           1.6 kg | 3.5 lb

Dimensions                  152mm OD x 101.6mm ID | 6" OD x 4" ID

More Information

Specifications

Specifications
Weight (lb) 3.50
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN100CF 152mm | 6.00" OD
Flange Type ConFlat CF Flange
Internal Diameter (ID) 101.6mm | 4 Inch ID Nominal (4.010")
