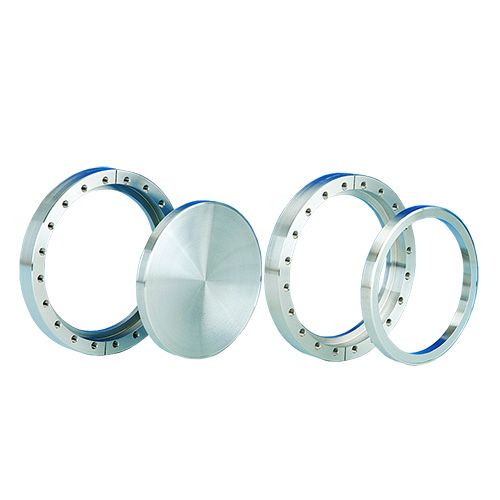

120088, Flange, Del-Seal, Conflat Flange, DN160CF, 203mm x 156mm (8" x 6"), Tapped, Rotatable, 304ss

• Complies with ISO 3669

• UHV rated to 1x10^-13 Torr mbar

• High temperature rated to 450°C

• Rotatable and non-rotatable geometries

• OFE Copper or optional Fluorocarbon-based fluoroelastomer (FKM / FPM) elastomer gaskets

• Tapped or clearance bolt holes

• Compatible with other manufacturers' Conflat® knife-edge flanges

Material

• Flanges               304ss (1.4301) or 316EFR (1.4429 ESU)

• Gaskets                OFE Copper

• Bolts                  300 stainless steel and 300ss silver Plated

Fastening

• Bolt type              Hexagonal or 12-point head

• Nut type              Hexagonal or two-hole plate nuts

• Size                  .312-24 UNF or M8

• Torque                15 lb-ft or 20 Nm

Vacuum Range             1x10^-13 Torr or below 10^-13 mbar

Temperature Range       -200⁰C to 450⁰C

Weight                           2.5 kg | 5.5 lbs

Dimensions                203mm OD x 156mm ID |  8” OD x 6" ID
