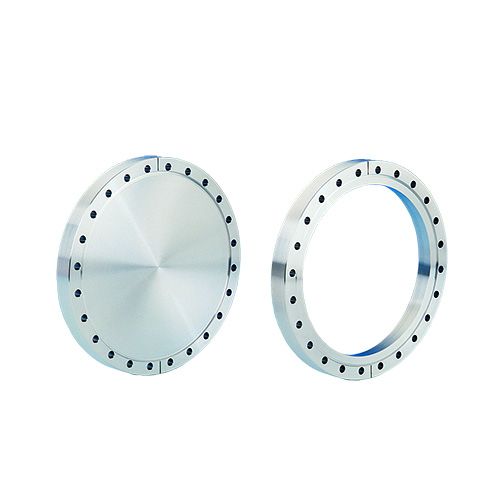

120089, Flange, Del-Seal, Conflat Flange, DN200CF, 254mm x 209.6 (10" x 8.25"),Tapped, Rotatable, 304ss

Part Number / SKU
120089
$521.00
Availability: Contact Us
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
  • Complies with ISO 3669
  • UHV rated to 1x10-13 Torr mbar

  • High temperature rated to 450°C

  • Rotatable and non-rotatable geometries

  • OFE Copper or optional Fluorocarbon-based fluoroelastomer (FKM / FPM) elastomer gaskets

  • Tapped or clearance bolt holes

  • Compatible with other manufacturers' Conflat® knife-edge flanges

Material

  • Flanges               304ss (1.4301)

  • Gaskets                OFE Copper

  • Bolts                  300 stainless steel

Fastening

  • Bolt type              Hexagonal

  • Nut type              Hexagonal

  • Size                       M8

  • Torque                 20 Nm

Vacuum Range             Below 10-13 mbar



Temperature Range            -2000C to 4500C



Weight                      3.5 kg | 7.7 lbs



Dimensions            254mm x 209.6 | 10" x 8.25"

More Information

Specifications

Specifications
Weight (lb) 7.70
Material 304SS (1.4301 | UNS S30400) Stainless Steel
