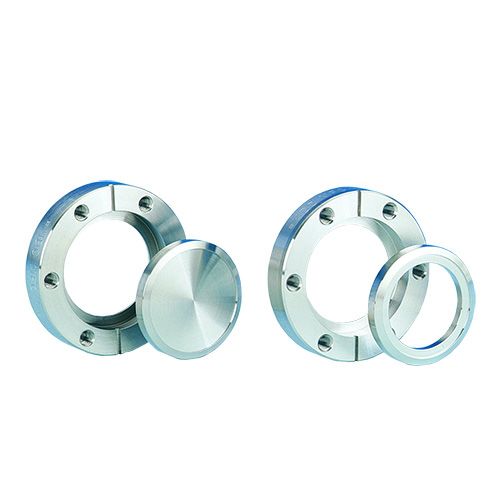

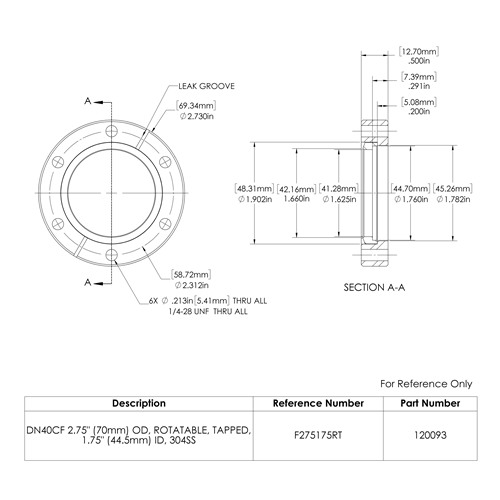

DN40CF 2.75" (70mm) OD, Rotatable, Tapped, 1.75" (44.5mm) ID, 304ss
Part Number / SKU
120093
$36.63
Availability:
6 Weeks
Flange, 2.75" x 1.75", Rotatable, Tapped, 304ss
More Information
Specifications
| Weight (lb) | 0.50 |
| Material | 304SS (1.4301 | UNS S30400) Stainless Steel |
| Number of Bolt Holes | 6 |
| Thread Size | 0.250-28 UNF |
| Bolt Hole Type | Tapped |
| Flange Geometry | Rotatable |
| Flange Size | DN40CF 70mm | 2.75" (2 3/4") OD |
| Flange Type | ConFlat CF Flange |
| Internal Diameter (ID) | 44.5mm | 1 3/4 Inch ID Nominal (1.760") |
