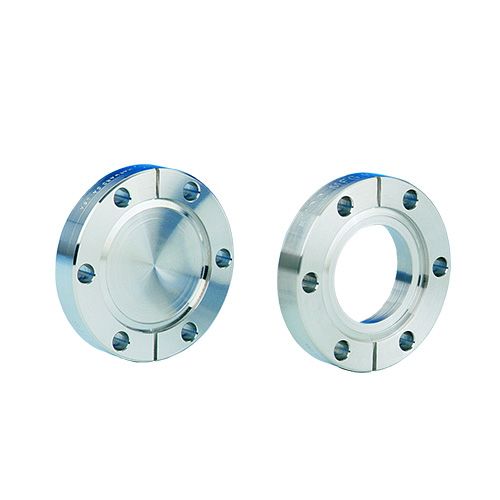

Flange, 2.75" x 1.5", Tapped, 304ss

Part Number / SKU
130014
$25.20
Availability: In Stock
Quantity:
137 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
Flange, 2.75" x 1.5", Tapped, 304ss

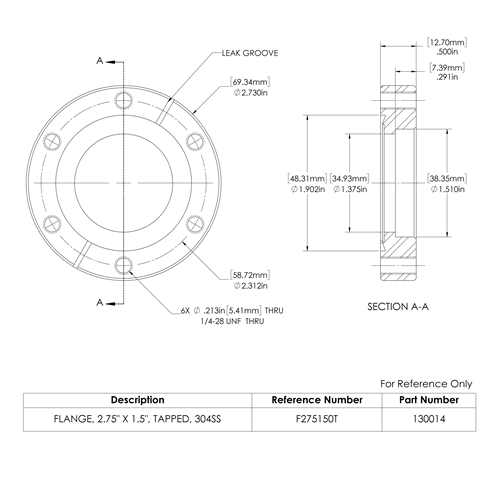

130014_fr_dwg (4.00 kB)
130014_sc_dxf (2.87 kB)
130014.stp (104.05 kB)
130014_fr_dxf (2.20 kB)
130014_sc_dwg (4.63 kB)

More Information

Specifications

Specifications
Weight (lb) 0.500000
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 6
Thread Size 0.250-28 UNF
Bolt Hole Type Tapped
Flange Geometry Non-Rotatable
Flange Size DN40CF 70mm | 2.75" (2 3/4") OD
Flange Type ConFlat CF Flange
Internal Diameter (ID) 38.1mm | 1 1/2 Inch ID Nominal (1.510")
