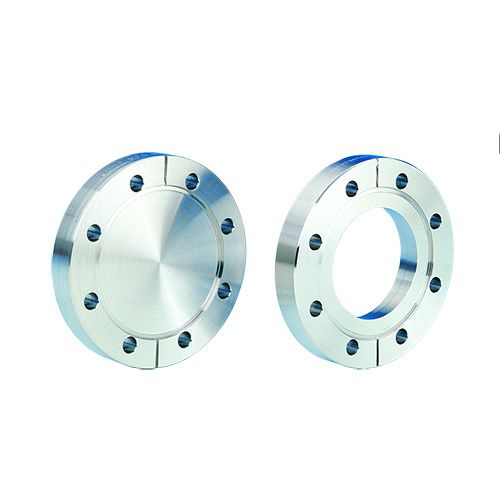

Flange, 3.38" x 1.5", Tapped, 304ss

Part Number / SKU
130016
$52.50
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

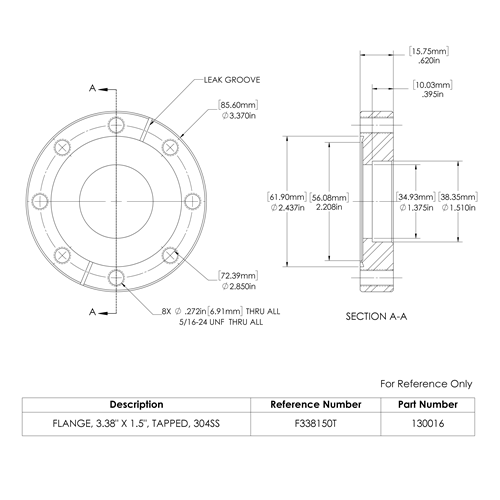

Flange, 3.38" x 1.5", Tapped, 304ss
130016.stp (125.85 kB)
130016_fr_dwg (4.16 kB)
130016_sc_dxf (2.95 kB)
130016_fr_dxf (2.32 kB)
130016_sc_dwg (4.76 kB)

More Information

Specifications

Specifications
Weight (lb) 1.000000
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 8
Thread Size 0.312-24 UNF
Bolt Hole Type Tapped
Flange Geometry Non-Rotatable
Flange Size DN50CF 86mm | 3.375" (3 3/8") OD
Flange Type ConFlat CF Flange
Internal Diameter (ID) 38.1mm | 1 1/2 Inch ID Nominal (1.510")
