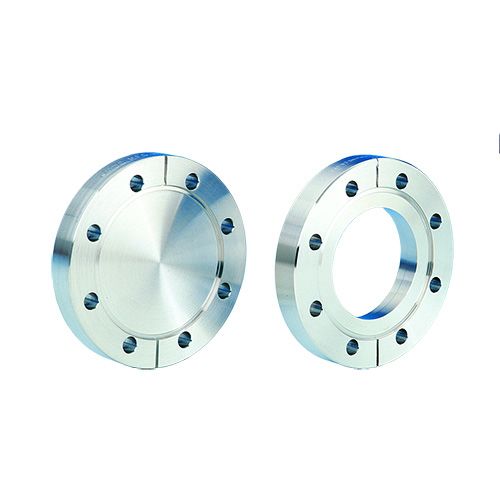

Flange, 4.5"Blank, Tapped, 304ss

Part Number / SKU
130018
$70.35
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
Flange, 4.5"Blank, Tapped, 304ss

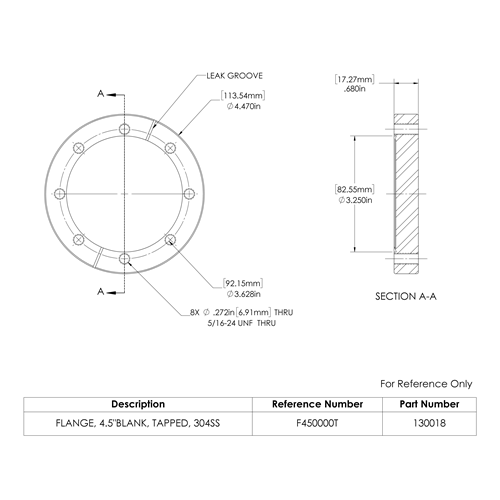

130018_sc_dwg (4.83 kB)
130018_fr_dxf (2.31 kB)
130018_fr_dwg (4.16 kB)
130018_sc_dxf (3.02 kB)
130018.stp (117.09 kB)

More Information

Specifications

Specifications
Weight (lb) 3.000000
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 8
Thread Size 0.312-24 UNF
Bolt Hole Type Tapped
Flange Geometry Non-Rotatable
Flange Size DN63CF 114mm | 4.5" (4 1/2")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) Blank
