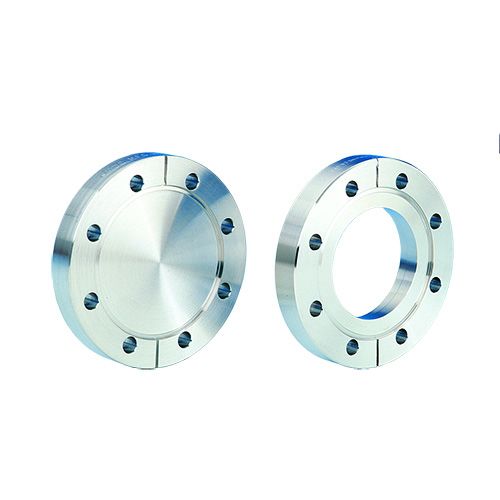

Flange, 4.5" x 2.5"Tapped, 304ss

Part Number / SKU
130021
$70.35
Availability: In Stock
Quantity:
285 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
Flange, 4.5" x 2.5"Tapped, 304ss

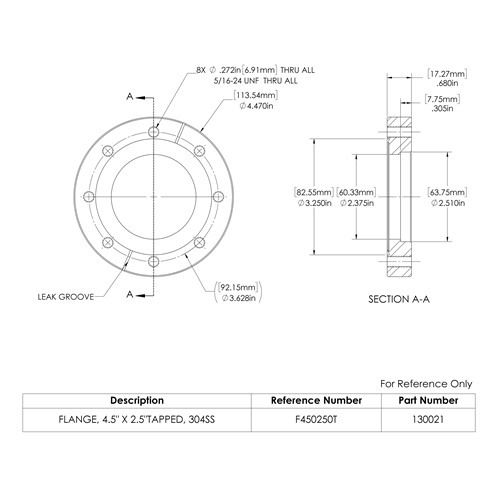

130021_fr_dwg (4.17 kB)
130021_sc_dxf (2.99 kB)
130021.stp (125.58 kB)
130021_fr_dxf (2.32 kB)
130021_sc_dwg (4.79 kB)

More Information

Specifications

Specifications
Weight (lb) 0.500000
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 8
Thread Size 0.312-24 UNF
Bolt Hole Type Tapped
Flange Geometry Non-Rotatable
Flange Size DN63CF 114mm | 4.50" (4 1/2") OD
Flange Type ConFlat CF Flange
Internal Diameter (ID) 63.5mm | 2 1/2 Inch ID Nominal (2.510")
