Flange, 6" x 4", Tapped, 304ss

Flange, 6" x 4", Tapped, 304ss

Part Number / SKU

130026

$108.15

Availability: In Stock

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

130026.SLDDRW

130026_TechnicalSpecs.rtf

130026.SLDPRT

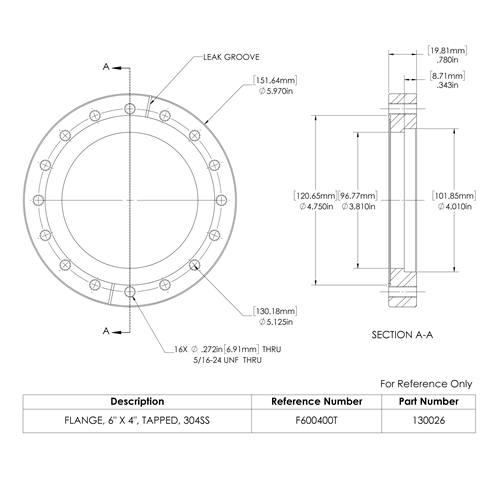

130026_E.DWG

130026_E.STEP


130026_E.pdf

Skip to the end of the images gallery

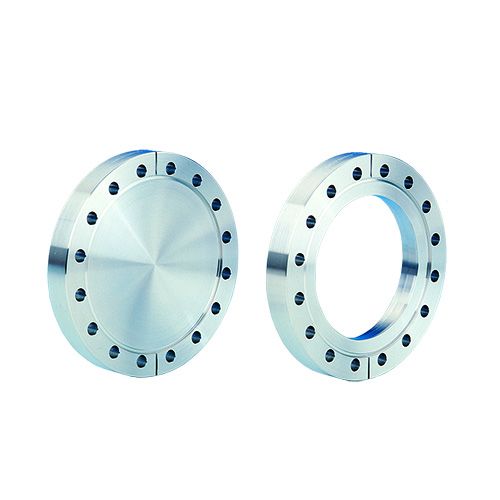

main product photo

Skip to the beginning of the images gallery

Flange, 6" x 4", Tapped, 304ss

More Information

Specifications

Specifications
Weight (lb)	0.50
Material	304SS (1.4301 \| UNS S30400) Stainless Steel
Number of Bolt Holes	16
Thread Size	0.312-24 UNF
Bolt Hole Type	Tapped
Flange Geometry	Non-Rotatable
Flange Size	DN100CF 152mm \| 6.00" OD
Flange Type	ConFlat CF Flange
Internal Diameter (ID)	101.6mm \| 4 Inch ID Nominal (4.010")
