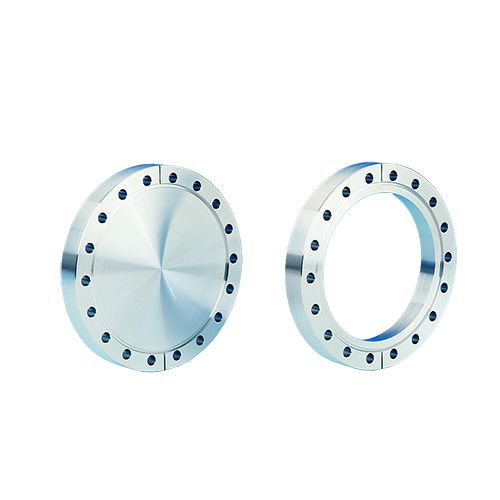

Flange, 6.75" x 5", Tapped, 304ss

Part Number / SKU
130029
$87.26
Availability: In Stock
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

130029.SLDDRW Download
130029_E.DWG Download
130029_E.PDF Download
130029_E.STEP Download

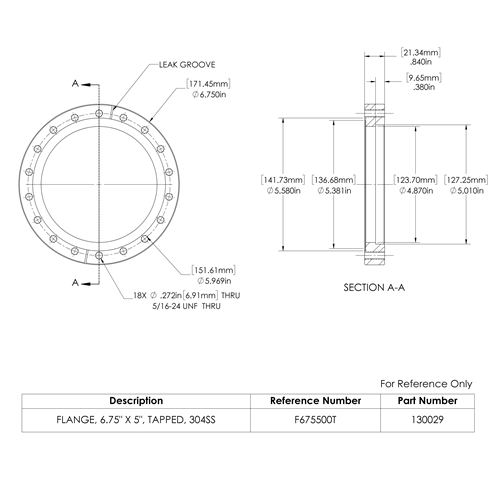

130029_E.PNG Download
130029_TechnicalSpecs.rtf Download
130029.SLDPRT Download
Flange, 6.75" x 5", Tapped, 304ss

More Information

Specifications

Specifications
Weight (lb) 0.50
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 18
Thread Size 0.312-24 UNF
Bolt Hole Type Tapped
Flange Geometry Non-Rotatable
Flange Size DN125CF 172mm | 6.75" (6 3/4") OD
Flange Type ConFlat CF Flange
Internal Diameter (ID) 127mm | 5 Inch ID Nominal (5.010")
