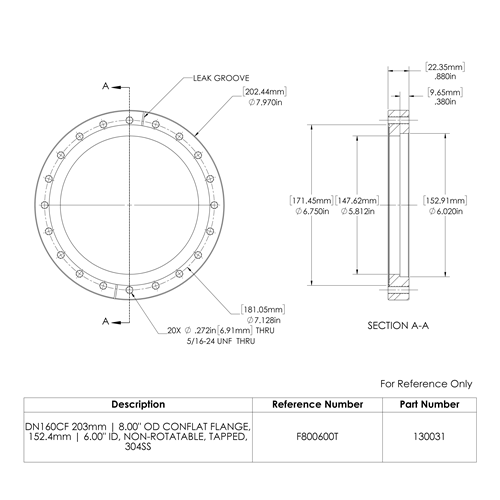

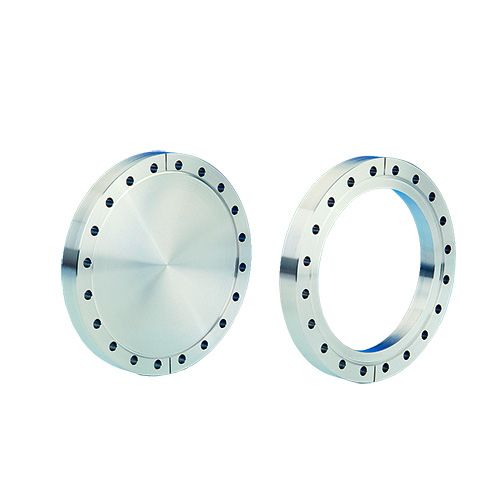

130031, DN160CF 203mm | 8.00" OD ConFlat Flange, 152.4mm | 6.00" ID, Non-Rotatable, Tapped, 304ss

Features

• Complies with ISO 3669
• UHV rated to 1x10^-13 Torr mbar
• High temperature rated to 450°C
• Rotatable and non-rotatable geometries
• OFE Copper or optional Fluorocarbon-based fluoroelastomer (FKM / FPM) elastomer gaskets
• Tapped or clearance bolt holes
• Compatible with other manufacturers' Conflat® knife-edge flange

Specifications

Material

• Flanges 304ss ( 1.430 I) or 316EFR ( 1.4429 ESU)
• Gaskets OFE Copper
• Bolts 300 Stainless steel and 300ss silver Plated

Fastening

• Bolt type Hexagonal or 12-point head
• Nut type Hexagonal or two-hole plate nuts
• Size .312-24 UNF or M8
• Torque 15 lb-ft or 20 Nm

Vacuum range                                   1x10^-13 Torr or below 10^-13 mbar

Temperature range                         -200⁰C to 450⁰C

Weight                                                 12lb or 5.5kg maximum

Dimensions                                        7.97”OD x 5.81” ID; 202.4mm OD x 156mm ID maximum
