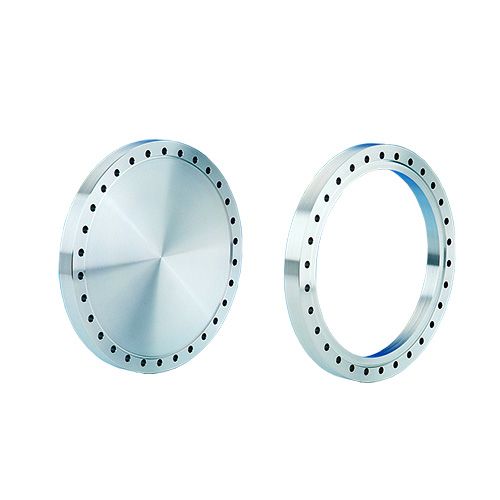

130059, Flange, Del Seal, Conflat Flange, DN250CF, 304mm x 254mm (12" x 10"), Tapped, Non-Rotatable, 304ss

Part Number / SKU
130059
$357.00
Availability: Backordered

This product is currently on back order (orders are still accepted).

Quantity:
0 Available
Standard Lead Time:
5 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
  • Complies with ISO 3669
  • UHV rated to 1x10-13 Torr or10-13 mbar
  • High temperature rated to 450°C
  • Rotatable and non-rotatable geometries
  • OFE Copper or optional Fluorocarbon-based fluoroelastomer (FKM / FPM) elastomer gaskets
  • Tapped or clearance bolt holes
  • There is widespread incompatibility between different manufacturers' larger sizes of the CF flange No DN International Standard notation exists for CF flange sizes 304mm ( 12") OD and above.

Material

  • Flanges                304ss (1.430I)
  • Gaskets               OFE copper
  • Bolts                    Stainless steel

Fastening

  • Bolt Type              Hexagonal
  • Nut Type               Hexagonal
  • Size                       M8
  • Torque                  20 Nm



Vacuum range               Below 10-13 mbar



Temperature range       -200°C to 450°C



Weight                               4.5 kg | 10 lbs



Dimensions                      304mm OD x 254mm ID | 12" OD x 10" ID

More Information

Specifications

Specifications
Weight (lb) 10.000000
