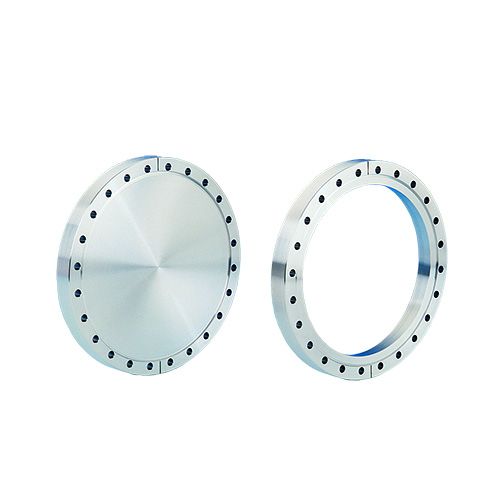

130076, DN200CF 254mm | 10.00" OD ConFlat Flange, 198.4mm ID, Non-Rotatable, M8 Tapped, 304ss

Part Number / SKU
Contact MDC for Price
Availability: 3 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.


  • Complies with ISO 3669

  • UHV rated to 1x10-13 Torr mbar

  • High temperature rated to 450¬∞C

  • Rotatable and non-rotatable geometries

  • OFE Copper or optional Fluorocarbon-based fluoroelastomer (FKM / FPM) elastomer gaskets

  • Tapped or clearance bolt holes

  • Compatible with other manufacturers' Conflat® knife-edge flange

More Information


Weight (lb) 7.50
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 24
Reference Number CF250-200T
Temperature Range -200°C to 450°C
Thread Size M8
Vacuum Range 1x10-13 Torr | below 10-13 mbar
Vacuum Series Ultra High Vacuum (UHV)
Bolt Hole Type Tapped
Flange Geometry Non-Rotatable
Flange Size DN200CF 254mm | 10.00" OD
Flange Thread Type Metric
Flange Type ConFlat CF Flange
