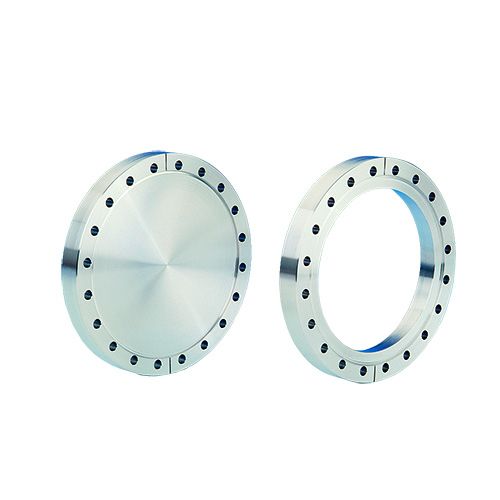

DN160CF 203mm | 8.00" OD ConFlat Flange, Non-Rotatable, 156mm | 6.14" Tube OD, Tapped, 304ss

• Complies with ISO 3669

• UHV rated to 1x10^-13 Torr mbar

• High temperature rated to 450°C

• Rotatable and non-rotatable geometries

• OFE Copper or optional Fluorocarbon-based fluoroelastomer (FKM / FPM) elastomer gaskets

• Tapped or clearance bolt holes

• Compatible with other manufacturers' Conflat® knife-edge flanges

Material

• Flanges               304ss (1.4301)

• Gaskets                OFE Copper

• Bolts                  300 stainless steel

Fastening

• Bolt type              Hexagonal

• Nut type              Hexagonal or two-hole plate nuts

• Size                      M8

• Torque                 20 Nm

Vacuum Range             to below 10^-13 mbar

Temperature Range            -200⁰C to 450⁰C

Weight                      2.5kg | 5.5 lbs

Dimensions             203mm OD x 156mm ID| 8" OD x 6.1" ID
