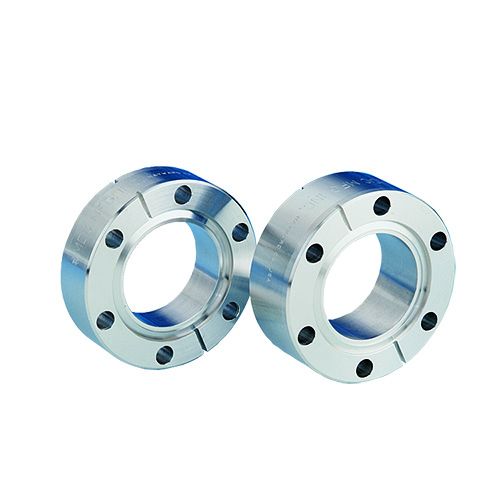

Double Sided Flange, 2.125"x1"

Name: Double Sided Flange, 2.125"x1"
SKU: 140006
Price: 116.47 USD
Availability: InStock

Part Number / SKU

140006

$116.47

Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:

0 Available

Lead Time:

6 weeks

Double Sided Flange, 2.18"x1"

140006_fr_dxf (2.15 kB)

140006_SC_dwg (4.85 kB)

140006.stp (72.93 kB)

140006_FR_dwg (3.89 kB)

140006_sc_dxf (2.77 kB)

More Information

Specifications
Weight (lb)	0.500000
Bolt Circle Diameter	1.625 inch
Bolt Hole Diameter	0.265 inch
Material	304SS (1.4301 \| UNS S30400) Stainless Steel
Number of Bolt Holes	4
Bolt Hole Type	Clearance
Flange Size	DN25CF 54mm \| 2.125" (2 1/8") OD
Flange Type	Del-Seal CF ConFlat - Double Sided
Internal Diameter (ID)	1 Inch Nominal (0.875)
