Double Sided Flange, 2.75"x0.25"

Double Sided Flange, 2.75"x0.25"

Part Number / SKU

140008

Contact MDC for Price

Availability: 6 Weeks

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

140008_A.DWG

140008.SLDDRW

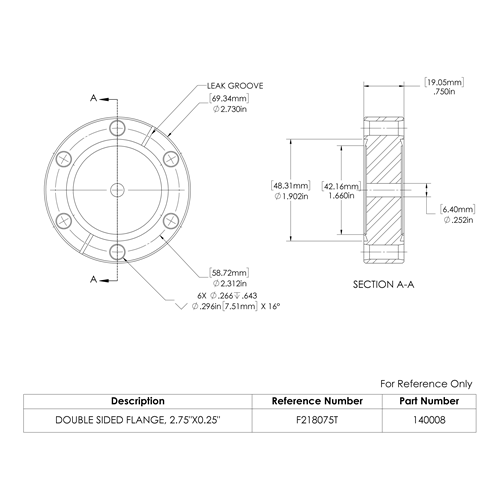

140008_A.PDF

140008_TechnicalSpecs.rtf

140008.SLDPRT


140008_A.STEP

Skip to the end of the images gallery

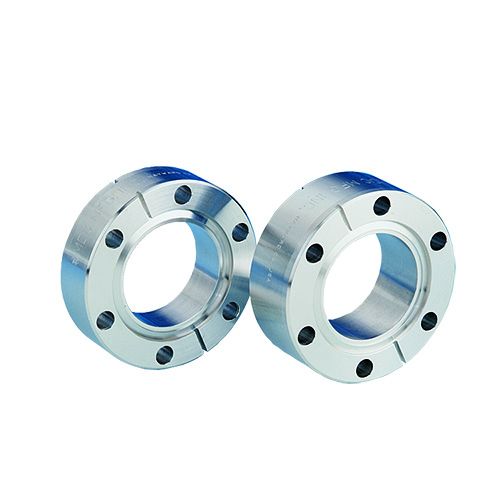

main product photo

Skip to the beginning of the images gallery

Double Sided Flange, 2.75"x0.25"

More Information

Specifications

Specifications
Weight (lb)	0.75
Bolt Circle Diameter	2.312 inch
Bolt Hole Diameter	0.265 inch
Material	304SS (1.4301 \| UNS S30400) Stainless Steel
Number of Bolt Holes	6
Bolt Hole Type	Clearance
Flange Size	DN40CF 70mm \| 2.75" (2 3/4") OD
Flange Type	ConFlat CF Flange
Internal Diameter (ID)	6.4mm \| 1/4 Inch ID Nominal (0.252")
