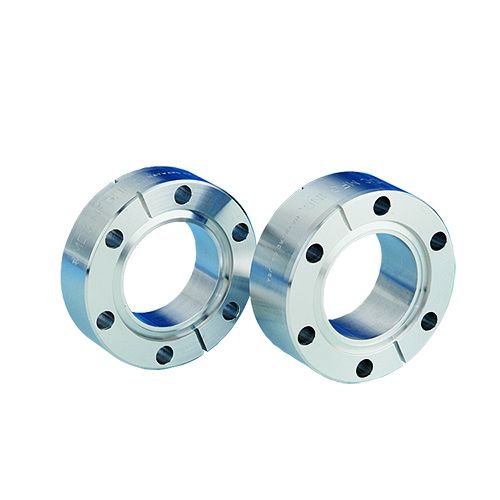

Double Sided Flange, 2.75"x0.75"

Part Number / SKU
140010
$81.90
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
Double Sided Flange, 2.75"x0.75"
140010_fr_dxf (2.19 kB)
140010_SC_dwg (5.42 kB)
140010_FR_dwg (3.96 kB)
140010_sc_dxf (3.19 kB)
140010.stp (105.12 kB)

More Information

Specifications

Specifications
Weight (lb) 0.750000
Bolt Circle Diameter 2.312 inch
Bolt Hole Diameter 0.265 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 6
Bolt Hole Type Clearance
Flange Size DN40CF 70mm | 2.75" (2 3/4") OD
Flange Type ConFlat CF Flange
Internal Diameter (ID) 19.1mm | 3/4 Inch ID Nominal (0.625")
