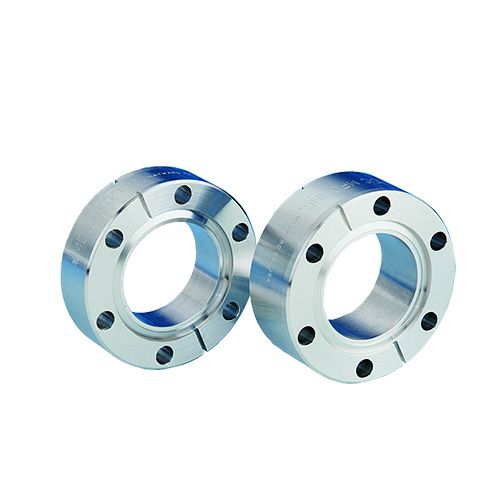

Double Sided Flange, 2.75"x1.25"

Part Number / SKU
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
Double Sided Flange, 2.75"x1.25"
140012_fr_dxf (2.19 kB)
140012_SC_dwg (5.31 kB)
140012_FR_dwg (3.96 kB)
140012_sc_dxf (3.11 kB)
140012.stp (105.12 kB)

More Information


Weight (lb) 0.750000
Bolt Circle Diameter 2.312 inch
Bolt Hole Diameter 0.265 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 6
Bolt Hole Type Clearance
Flange Size DN40CF 70mm | 2.75" (2 3/4") OD
Flange Type ConFlat CF Flange
Internal Diameter (ID) 31.8mm | 1 1/4 Inch ID Nominal (1.255")
