Double Sided Flange, 2.75"x1.50", 1"Thk

Double Sided Flange, 2.75"x1.50", 1"Thk

Part Number / SKU

140014

Contact MDC for Price

Availability: 6 Weeks

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

140014.SLDPRT

140014.SLDDRW

140014_A.DWG

140014_TechnicalSpecs.rtf

140014_A.PDF


140014_A.STEP

Skip to the end of the images gallery

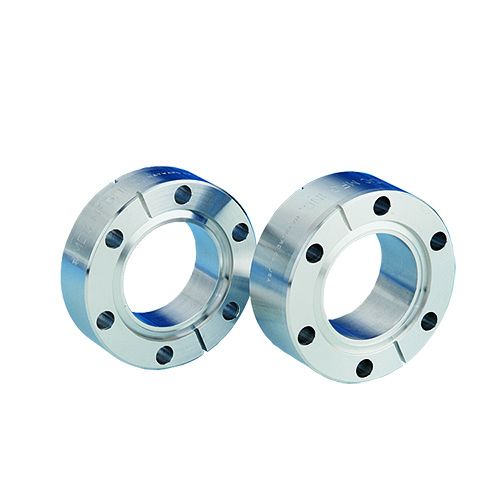

main product photo

Skip to the beginning of the images gallery

Double Sided Flange, 2.75"x1.50", 1"Thk

More Information

Specifications

Specifications
Weight (lb)	0.75
Bolt Circle Diameter	2.312 inch
Bolt Hole Diameter	0.265 inch
Material	304SS (1.4301 \| UNS S30400) Stainless Steel
Number of Bolt Holes	6
Bolt Hole Type	Clearance
Flange Size	DN40CF 70mm \| 2.75" (2 3/4") OD
Flange Type	ConFlat CF Flange
Internal Diameter (ID)	38.1mm \| 1 1/2 Inch ID Nominal (1.510")
